Запчасти Case IH 1640 (9G-68) - REAR VIEW MIRROR, RIGHT (10) - CAB & AIR CONDITIONING

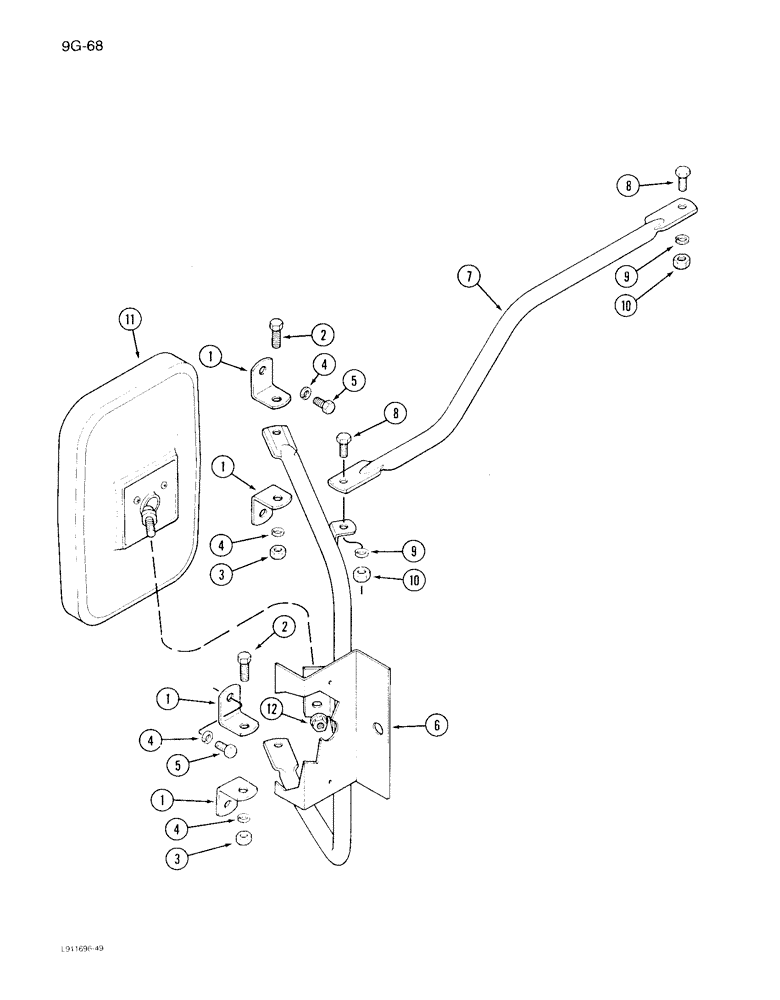

Схема запчастей Case IH 1640 - (9G-68) - REAR VIEW MIRROR, RIGHT (10) - CAB & AIR CONDITIONING
1
1
1
4
3
3
2
10
1
1
11
8
4
7
6
5
12
9
4
2
9
13
5
1

Артикул

Название

Примечание

Количество

1

1281917C1

ANGLE

- mirror

4шт.

2

113-198

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch

2шт.

3

329-105

NUT,5/16"-18, G8

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex lock, 5/16 NC x 3/4 inch

4шт.

5

326-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 8

- hex, 5/16 NC x 5/8 inch, Grade 8

4шт.

6

1281914C1

TUBE,438.5, 246.7 mm Length

ASSEMBLY - mirror, right

1шт.

7

1281916C3

LEVER

TUBE - brace, right

1шт.

8

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

9

329-106

NUT,3/8"-16, G8

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

1283403C1

MIRROR

- rear view, right

1шт.

12

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

Выбрано товаров: 13
