Запчасти Case IH 1640 (9G-66) - COMPRESSOR (10) - CAB & AIR CONDITIONING

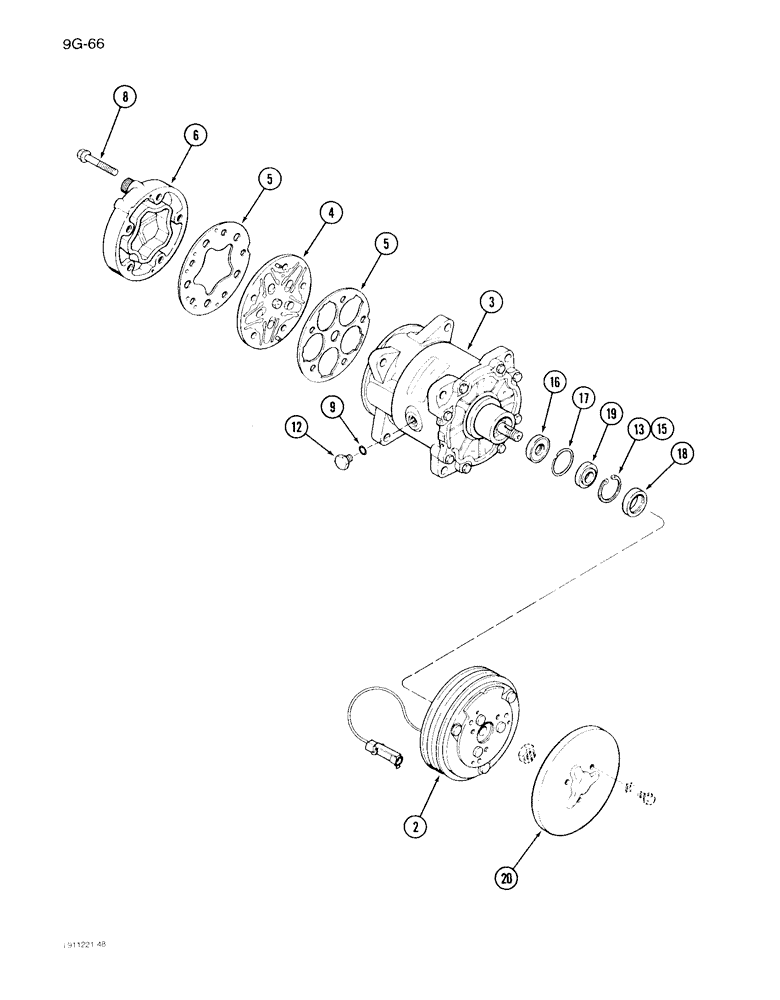

Схема запчастей Case IH 1640 - (9G-66) - COMPRESSOR (10) - CAB & AIR CONDITIONING
9
5
3
8
5
16
20
13
17
4
15
19
6
2
18
12

Артикул

Название

Примечание

Количество

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, Includes: Ref. 2 - 20

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

1640 CASE IH AXIAL-FLOW COMBINE (S/N JJC0034705 & AFTER) (NORTH AMERICA), COMPRESSOR ASSEMBLY (1/86-12/92)

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

1981779C1

CLUTCH ASSEMBLY

CLUTCH ASSEMBLY - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - compressor (Order 1977959C1)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - compressor valve (Order 1977959C1)

1шт.

5

A49668

GASKET KIT

GASKET KIT - valve plate

1шт.

6

1958959C1

COVER

HEAD ASSEMBLY - cylinder

1шт.

8

A49669

SCREW,Cylinder

BOLT - hex flanged head

5шт.

9

A49666

O-RING

O-RING - rubber

3шт.

12

A49667

PLUG

PLUG - oil filler

1шт.

13

A49664

CIRCLIP

RING - snap, seal seat

1шт.

A49665

SEAL KIT

SEAL KIT - compressor, Includes: Ref. 15 - 19

1шт.

15

A49664

CIRCLIP

RING - snap, seal seat

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

18

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

20

1958961C1

COVER

COVER - dust, clutch

1шт.

Выбрано товаров: 19
