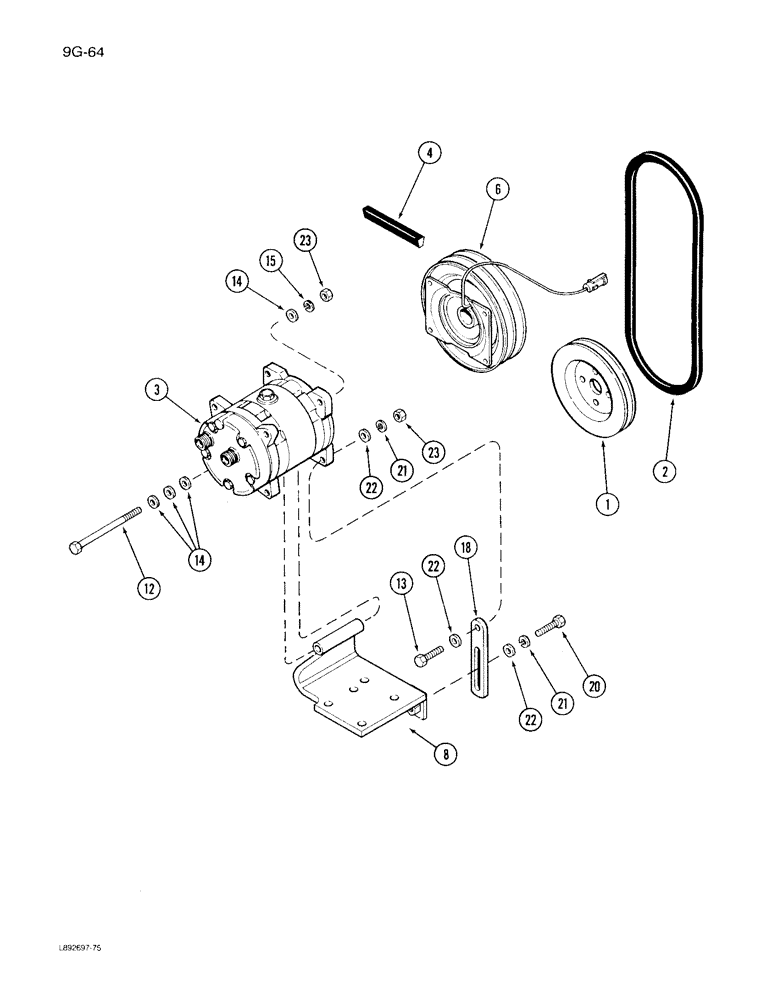

Запчасти Case IH 1640 (9G-64) - COMPRESSOR MOUNTING AND PULLEY (10) - CAB & AIR CONDITIONING

1

A184596

PULLEY

- compressor drive

1шт.

2

J911574

V-BELT,27.92mm W x 1587.5mm L, 8 Ribs

Fan Drive 3.56 mm W x 1587.50 mm L, 8 Ribs

1шт.

3

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9G-66)

1шт.

4

396829R1

V-BELT,0.50" W x 44.00" L

Compressor drive (Replaces 164550R2) 0.50" W x 44.00" L

1шт.

6

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor (See Figure 9G-66)

1шт.

8

A189290

SUPPORT

- compressor mounting

1шт.

12

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 x 130 mm

1шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

13

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

5шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

14

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

18

84716C1

SUPPORT

STRAP - adjusting, compressor

1шт.

20

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

3шт.

22

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

2шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

23

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, Grade 10

2шт.
