Запчасти Case IH 1640 (9G-62) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

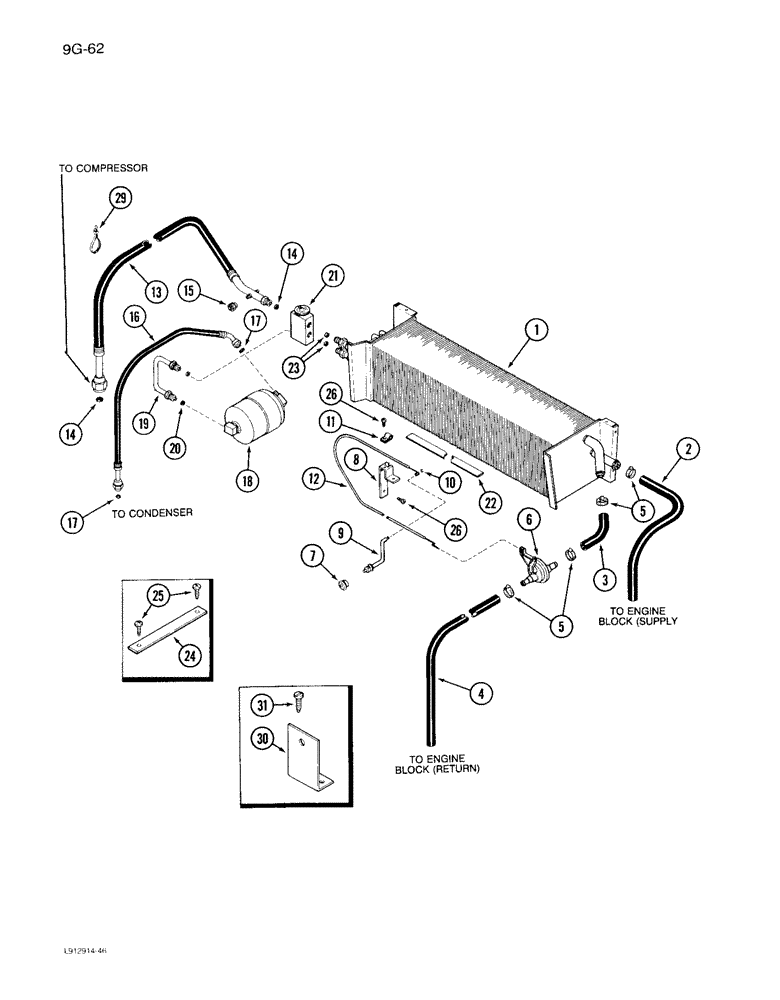

Схема запчастей Case IH 1640 - (9G-62) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING
16
24
14
26
13
18
9
17
20
26
29
12
10
19
15
25
4
11
21
22
8
7
6
5
1
31
23
5
30
14
17
2
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CORE - heater and evaporator (See Figure 9G-54)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (Order 1255859C1, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve (return) 5 inch (Order 117724C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction (return) 115 inch (Order 117724C1, Serial Range: cut-length)

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE retaining, No.24

4шт.

6

1331087C1

HEATER VALVE

VALVE - heater control (Replaces 3234102R92)

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1989808C1

SUPPORT

- cable, heater valve control (Replaces 1283445C3)

1шт.

9

1989809C1

ARM

LEVER - heater control (Replaces 1281809C1)

1шт.

10

25408R1

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, #X21, .185" Dia, E-Type

1шт.

11

1954626C1

SPRING CLIP

CLIP - spring, cable retainer (Replaces 1283334C1)

1шт.

12

1989810C1

CABLE

- control, heater valve (Replaces 1276220C3)

1шт.

13

1276164C1

HOSE

- evaporator discharge, Ijncludes: Ref. 14, 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

1шт.

16

1276163C2

HOSE

- drier to cab, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - (See Figure 9G-54)

1шт.

19

1250438C1

TUBE ASSY.

TUBE - receiver-drier, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

118321C1

VALVE

- expansion (Use with 135777C2 core)

1шт.

21

118321C1GV

VALVE

- expansion (Use with 135777C2 core)

1шт.

21

98370C3

VALVE

- expansion (Use with 1974632C1 core)

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch (Order 1954475C1, Serial Range: cut-length)

1шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

3шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

30

98158C1

BRACKET

- heater valve support

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

Выбрано товаров: 31
