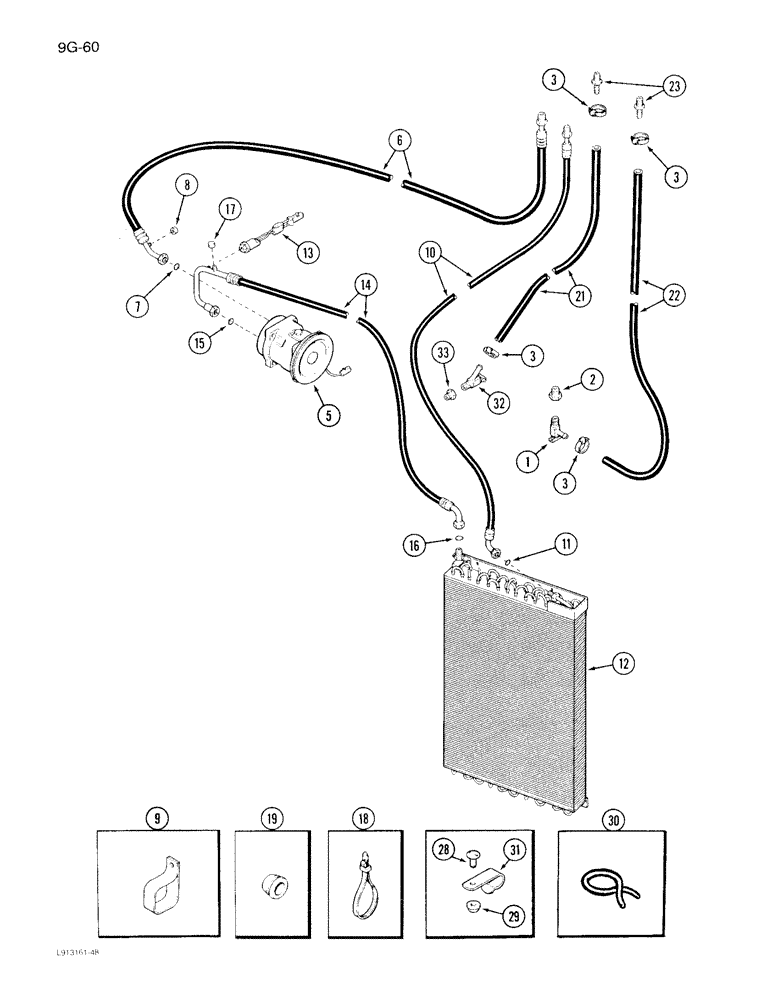

Запчасти Case IH 1640 (9G-60) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

941980R91

LOCK VALVE

VALVE - heater, 45 degree (Replaces 301803R1)

1шт.

2

175778H1

ADAPTER

- 1/2 to 3/8 inch

2шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose retaining, No. 12

2шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE retaining, No.24

4шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning (See Figure 9G-66)

1шт.

6

98042C2

HOSE ASSY.

HOSE - compressor to cab, 4 750 mm, Includes: Ref. 7, 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

1шт.

9

470375C1

CLAMP,1", Insul, 3/8" Bolt

CLIP - hose retaining

1шт.

10

1321292C4

HOSE

- condenser to cab, 4 743 mm, Includes: Ref. 11

1шт.

10

98045C2

HOSE ASSY.

HOSE - condenser to cab, 1 560 mm, Includes: Ref. 11

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

84581C1

CONDENSER

COIL - air conditioning condenser

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

14

98043C2

HOSE ASSY.

HOSE - compressor to condenser, Includes: Ref. 15 - 17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, 4 inch maximum bundle

1шт.

18

702093C1

CABLE TIE

STRAP - tie, 3 inch maximum

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch ID

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

2шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- hose, 1 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, red, 255 inch (Order 1255859C1, Serial Range: cut-length)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 298 inch long (Order 117724C1, Serial Range: cut-length)

1шт.

23

1301342C1

FITTING

CONNECTOR - heater hose inlet fitting

2шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

1шт.

30

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP - No. 14, Type E spring wire

2шт.

31

66498C1

CLIP

- hose retaining

1шт.

32

941980R91

LOCK VALVE

VALVE - heater, 45 degree

1шт.

33

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.
