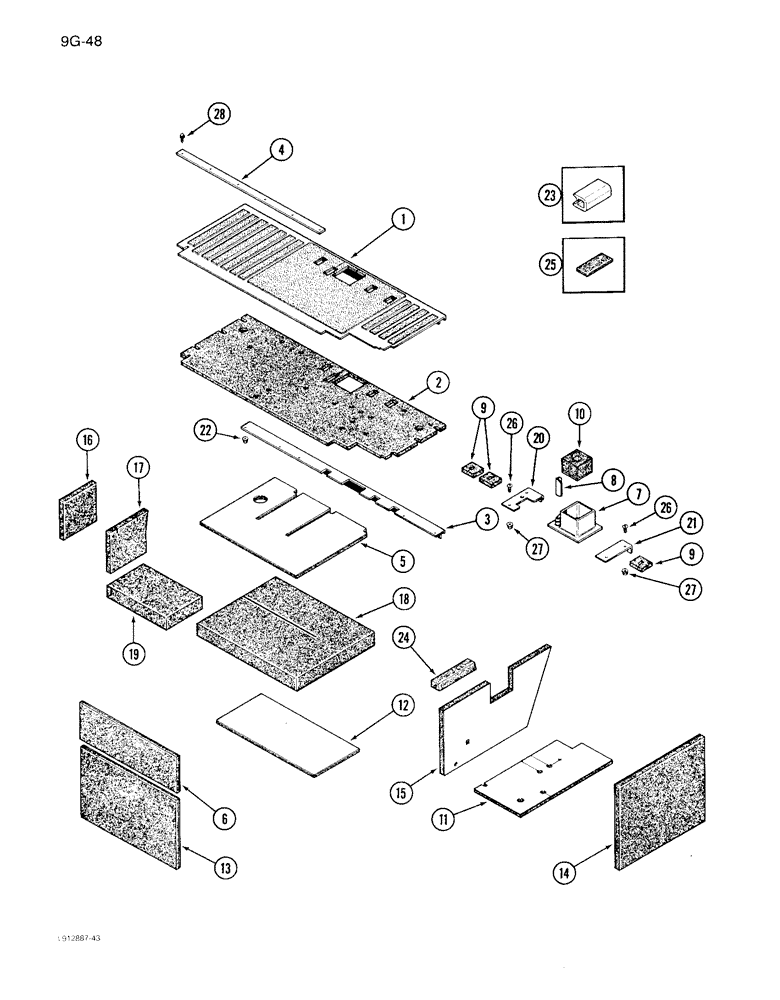

Запчасти Case IH 1640 (9G-48) - CAB SOUND INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

1

1329711C3

MAT

- floor

1шт.

2

1326885C1

INSULATOR

- floor mat sound

1шт.

3

1327603C1

SUPPORT

- floor mat front retainer (If equipped)

1шт.

4

91796C1

STRIP

- floor mat hold down, 1 045 mm long

1шт.

4

1338051C1

BRACKET

STRIP - floor mat hold down, J-type 1 352 mm long

1шт.

5

98123C4

SHEET ASSY.

SUPPORT - seat platform

1шт.

6

98008C2

INSULATOR

- center rear support

1шт.

7

198075C1

INSULATOR

- steering pedestal

1шт.

8

187581C1

ANGLE

- steering pedestal

1шт.

9

1321935C1

SEAL

- pedal

3шт.

10

1324844C1

SEAL

- steering pedestal

1шт.

11

196587C7

INSULATOR

FOAM - floor sound, right cover

1шт.

12

91793C2

INSULATOR

FOAM - floor sound, center cover

1шт.

13

91790C2

INSULATOR

FOAM - sound, center rear

1шт.

14

1301219C2

SHEET

FOAM - right console sound, outer cover

1шт.

15

91797C1

INSULATOR

FOAM - right console sound, inner cover

1шт.

16

196598C1

SHEET

FOAM - left console sound, outer cover

1шт.

17

1322927C2

INSULATOR

- left panel

1шт.

18

91791C2

INSULATOR

FOAM - center sound (If equipped)

1шт.

19

91792C3

SHEET ASSY.

FOAM - manual box sound

1шт.

20

1327567C1

PLATE

- pedestal boot hold down, left

1шт.

21

1327568C1

PLATE

- pedestal boot hold down, right

1шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

5шт.

23

1330108C2

SEAL ASSY.

TRIM - edge, 50 foot roll

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - rear inside edge to cab, 27-1/2 inch (Order 196707C1, Serial Range: cut-length)

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - left inside edge to cab, 14-3/4 inch (Order 196707C1, Serial Range: cut-length)

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - vertical flange under right door, 6 inch (Order 196707C1, Serial Range: cut-length)

1шт.

24

1288795C2

SEAL

- throttle lever

1шт.

25

1301236C1

SEALING STRIP

STRIP - operators cab to deck, 28 inch

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - truss head, 5/16 NC x 3/4 inch

6шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

6шт.

28

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- tapping, 1/4 x 1 inch

6шт.
