Запчасти Case IH 1640 (9G-46) - OPERATORS CAB DOOR AND REAR GLASS (10) - CAB & AIR CONDITIONING

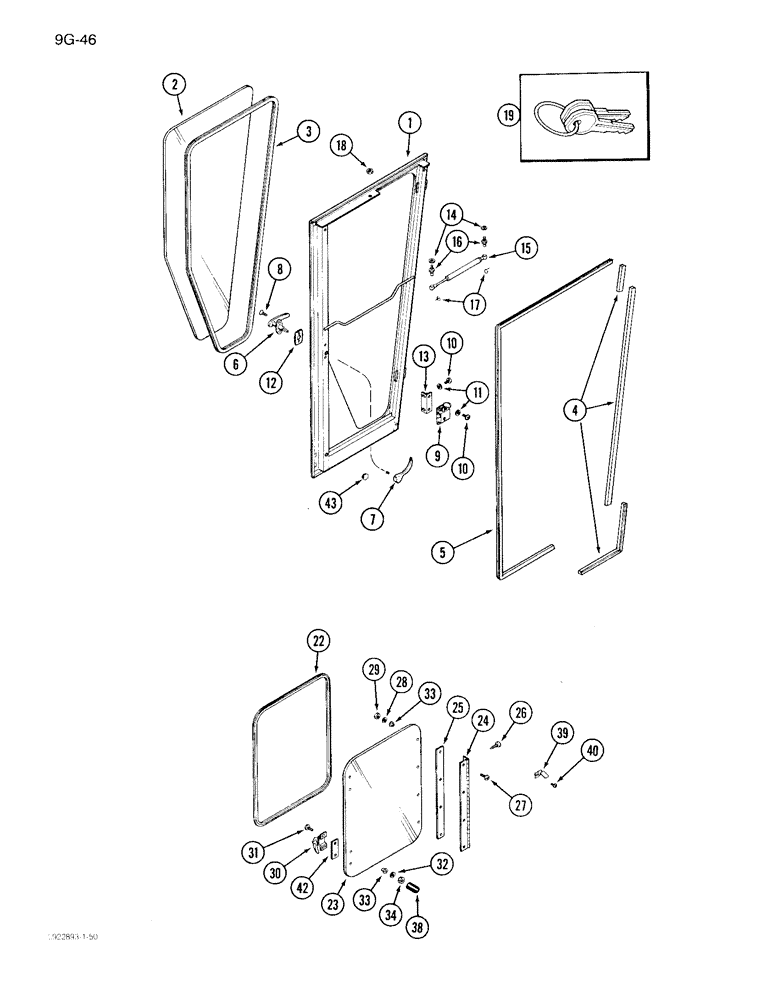

Схема запчастей Case IH 1640 - (9G-46) - OPERATORS CAB DOOR AND REAR GLASS (10) - CAB & AIR CONDITIONING
31
42
13
29
33
26
6
25
5
33
8
43
28
12
7
11
2
4
34
38
16
32
30
9
40
1
10
18
23
27
10
39
17
15
14
3
24
19
22

Артикул

Название

Примечание

Количество

1330154C92

CAB

ASSEMBLY - operator (With heater and air conditioning), Includes: Ref. 1 - 43

1шт.

1329477C3

DOOR

ASSEMBLY - cab, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Order 1329477C3)

1шт.

2

198184C1

GLASS

- cab door

1шт.

3

NSS

NOT SOLD SEPARAT

STRIP - seal, door glass, 130-1/2 inch (Order 198131C2 and, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - seal, door front, 52 inch (Order 198522C1 and, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - seal, door bottom corner, 19 inch (Order 198522C1 and cut length)

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - seal, door top corner, 3 inch (Order 198522C1 and, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - seal, door top and bottom, 99 inch (Order 198522C1 and, Serial Range: cut-length)

1шт.

1329468C1

HANDLE

ASSEMBLY - door inside lock, Includes: Ref. 6 - 12

1шт.

6

1329440C1

HANDLE

- door outside lock

1шт.

7

1329442C1

HANDLE

- door, inside

1шт.

8

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

- machine, No. 10-32 x 3/4 inch

2шт.

9

1329443C1

LATCH

ASSEMBLY - door, inside

1шт.

10

261-63512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NF x 3/4 inch

8шт.

11

393-41020

LOCK WASHER,Ext Tooth, #10

WASHER - external lock, No. 10

8шт.

12

1329441C1

GASKET

- handle

1шт.

13

1330184C1

BRACKET

ANGLE - support, latch

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

15

1280157C1

GAS STRUT

GAS SPRING - door control

1шт.

16

1340345C1

BALL STUD

STUD - ball

2шт.

17

1304647C1

CLIP

- retainer

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

1шт.

19

1970178C1

SET OF 2 KEYS

KEY - lock, door (Set of 2)

1шт.

22

109594C1

SEAL

STRIP - right rear window weather

1шт.

23

1987172C1

GLASS

- right rear window (Replaces 1283343C1)

1шт.

24

1301233C2

HINGE

- right rear window (Replaces 1301233C1)

1шт.

25

1301234C1

STRIP

SHIM - hinge, right rear window

1шт.

26

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NF x 1/2 inch

4шт.

27

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

4шт.

28

495-31022

WASHER,#10

4шт.

29

196922C1

LOCK NUT

- window lock

8шт.

30

170404C1

HANDLE

ASSEMBLY - right rear window lock (Metal)

2шт.

30

1987200C1

HANDLE

ASSEMBLY - right rear window lock (Plastic)

2шт.

31

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

- machine, pan head, No. 10 NC x 1-3/4 inch

2шт.

31

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

4шт.

32

495-31022

WASHER,#10

4шт.

33

896274C1

BUSHING

- window retainer cushion

8шт.

34

225-14110

NUT,#10-24

2шт.

38

196926C1

END FITTING

GRIP - window lock bolt cap (If equipped)

2шт.

39

1281761C2

SPRING

- latch, window

1шт.

40

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

2шт.

42

183585C1

STRIP

SHIM - right rear window strip

1шт.

43

28388R1

HOLE PLUG BUTTON,27/32"

PLUG - button, 27/32 inch hole

1шт.

Выбрано товаров: 44
