Запчасти Case IH 1640 (9G-36) - SEAT, SEARS, AIR SUSPENSION, PRIOR TO P.I.N. JJC0097001 (10) - CAB & AIR CONDITIONING

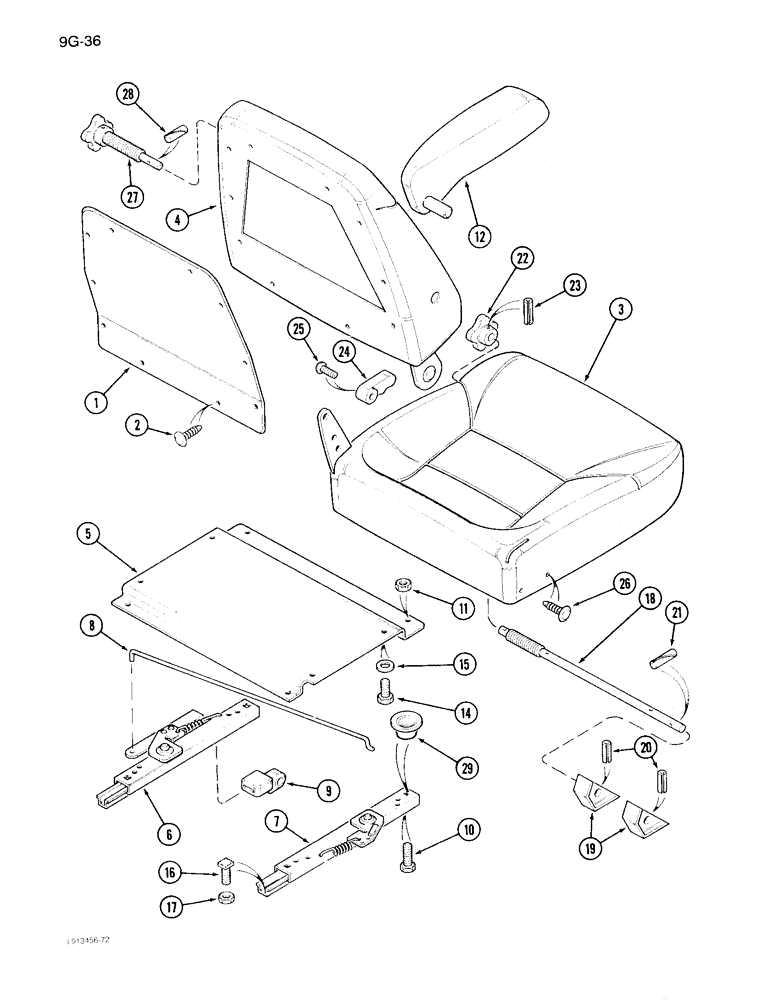

Схема запчастей Case IH 1640 - (9G-36) - SEAT, SEARS, AIR SUSPENSION, PRIOR TO P.I.N. JJC0097001 (10) - CAB & AIR CONDITIONING
23
14
16
11
7
1
10
15
17
9
26
21
4
2
24
28
22
18
20
6
27
19
5
29
3
25
8
12

Артикул

Название

Примечание

Количество

1340184C1

SEAT

ASSEMBLY - operators, air suspension, Includes: Ref. 1 - 29

1шт.

1

1981820C1

PACKAGE, REPAIR

KIT - back cover service, Includes: Ref. 2

1шт.

2

1974722C1

CLIP,ELECTRICAL

CLIP - christmas tree

10шт.

3

1981815C1

PACKAGE, REPAIR

KIT - seat pad

1шт.

4

1981816C1

BACKREST

KIT - backrest pad

1шт.

1981817C1

PACKAGE, REPAIR

KIT - slide adapter, Includes: Ref. 5 - 11

1шт.

5

1981868C1

SEAT SUPPORT

PLATE - slide adapter, Includes: Ref. 6 - 11

1шт.

6

1981822C1

SLIDE

- seat, with handle

1шт.

7

1981823C1

SLIDE

- seat

1шт.

8

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.

9

1981829C1

WINDOW STAY

KNOB - fore/aft

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16 inch NC

4шт.

12

1981818C1

ARMREST

KIT - arm rest, left

1шт.

14

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

117-101

BOLT

BOLT - square head 5/16 x 3/4 inch

4шт.

17

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

4шт.

1981856C1

PACKAGE, REPAIR

KIT - seat and backrest, Includes: Narrow Seat Shaft & Ref. 18 - 28

1шт.

1343826C2

SHAFT ASSY.

SHAFT - seat, narrow, Includes: Ref. 18 - 20

1шт.

18

1343827C1

CAMSHAFT

1шт.

19

1343828C1

CAM

- seat tilt

2шт.

20

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

22

1981826C1

KNOB

- seat tilt

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

1974711C1

LEVER

KNOB - backrest tilt

1шт.

25

30299R1

SCREW,Cross Oval Hd, M6 x 12

- round head, 6 x 12 mm

1шт.

26

1974722C1

CLIP,ELECTRICAL

CLIP - christmas tree

14шт.

27

1981828C1

BUTTON

KNOB - lumbar

1шт.

28

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

PIN - spiral

1шт.

29

S115782

BUSHING

SPACER - slide cup

4шт.

Выбрано товаров: 32
