Запчасти Case IH 1640 (9G-34) - SEAT, SEARS, MECHANICAL SUSPENSION, SERIAL NO. JJC0097001 & AFTER (10) - CAB & AIR CONDITIONING

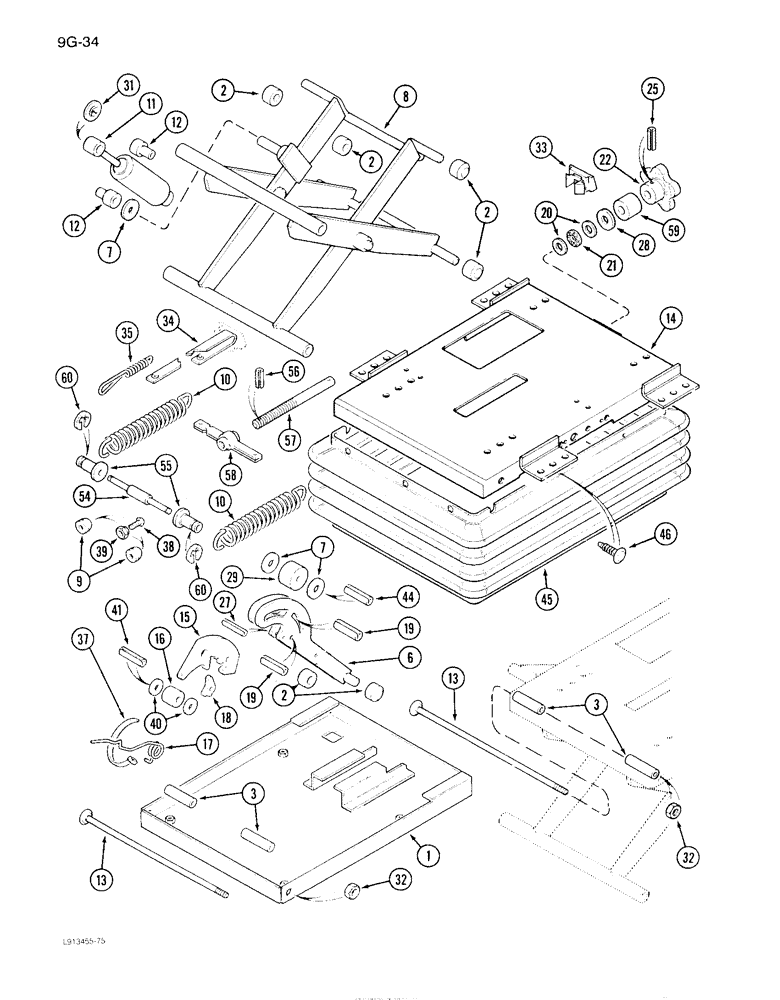

Схема запчастей Case IH 1640 - (9G-34) - SEAT, SEARS, MECHANICAL SUSPENSION, SERIAL NO. JJC0097001 & AFTER (10) - CAB & AIR CONDITIONING
38
21
39
18
11
2
56
59
13
9
57
20
1
10
2
12
28
34
58
6
7
46
27
19
37
60
8
22
29
25
17
35
15
40
32
14
13
44
12
3
10
2
31
45
55
33
32
60
3
2
16
54
41
7
19

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEAT ASSEMBLY - operators, mechanical suspension, continued

1шт.

1981819C1

PACKAGE, REPAIR

SUSPENSION KIT - mechanical seat, Includes: Ref. 1 - 60

1шт.

1

1981787C1

CASE

HOUSING - lower

1шт.

1344249C1

KIT

ROLLER TUBE KIT - bearing, Includes: Ref. 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

ROLLER - suspension

6шт.

3

NSS

NOT SOLD SEPARAT

BEARING - tube

4шт.

6

1981792C1

ARM

- mounting

1шт.

7

A45519

WASHER

- spacer, armrest

5шт.

8

1981789C1

DIPPER

ARM - assembly, suspension

1шт.

9

1981793C1

BUMPER

- seat

2шт.

10

1981794C1

SPRING

- external

2шт.

1344250C1

SHOCK ABSORBER

ABSORBER KIT - shock, Includes: Ref. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - shock absorber

2шт.

13

A49529

SHAFT

- bearing tube

2шт.

14

1981821C1

HOUSING

- upper

1шт.

15

1981798C1

CAM

- low profile

1шт.

16

1981799C1

BEARING, NEEDLE

BEARING - cam follower

1шт.

17

1981800C1

SPRING, LEAF

SPRING - height adjustment

1шт.

18

1981801C1

LATCH

- seat

1шт.

19

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

138-110

LOCK PIN,7/32" x 3/4", Slotted

PIN, LOCK, 7/32" x 3/4", Slotted

1шт.

20

1981802C1

WASHER, THRUST

RACE - thrust

2шт.

21

F13537

THRUST BEARING

BEARING - thrust

1шт.

22

118578C1

BUTTON

KNOB - weight adjusting

1шт.

25

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

27

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

28

1974732C1

WASHER

- flat

1шт.

29

1981796C1

BEARING, NEEDLE

BEARING - cam follower

1шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

33

1981807C1

GUIDE

- weight adjuster

1шт.

34

1981808C1

TAPE

- weight adjuster

1шт.

35

1981809C1

SPRING

- suspension

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

38

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

Retaining Cross Pan Hd, #10-24 x 5/8"

2шт.

39

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

40

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

41

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

44

138-2051

PIN,1/4" x 3/4", Coiled

1/4" x 3/4", Coiled

1шт.

45

1990647C1

PACKAGE

KIT - boot, suspension, Includes: Ref. 46

1шт.

46

1343837C1

SET OF PARTS

PIN - retaining (Package of 24)

1шт.

1987116C1

PACKAGE

ADJUSTMENT KIT - weight, Includes: Ref. 54 - 60

1шт.

54

NSS

NOT SOLD SEPARAT

SHAFT - spring

1шт.

55

NSS

NOT SOLD SEPARAT

BUSHING - spring

2шт.

56

NSS

NOT SOLD SEPARAT

PIN - roll, 5/32 x 5/8 inch

1шт.

57

NSS

NOT SOLD SEPARAT

SHAFT - weight adjustment

1шт.

58

NSS

NOT SOLD SEPARAT

BAR - weight adjustment

1шт.

59

NSS

NOT SOLD SEPARAT

SPACER - weight adjusting

1шт.

60

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

Выбрано товаров: 50
