Запчасти Case IH 1640 (9G-32) - SEAT, SEARS, MECHANICAL SUSPENSION, SERIAL NO. JJC0097001 & AFTER (10) - CAB & AIR CONDITIONING

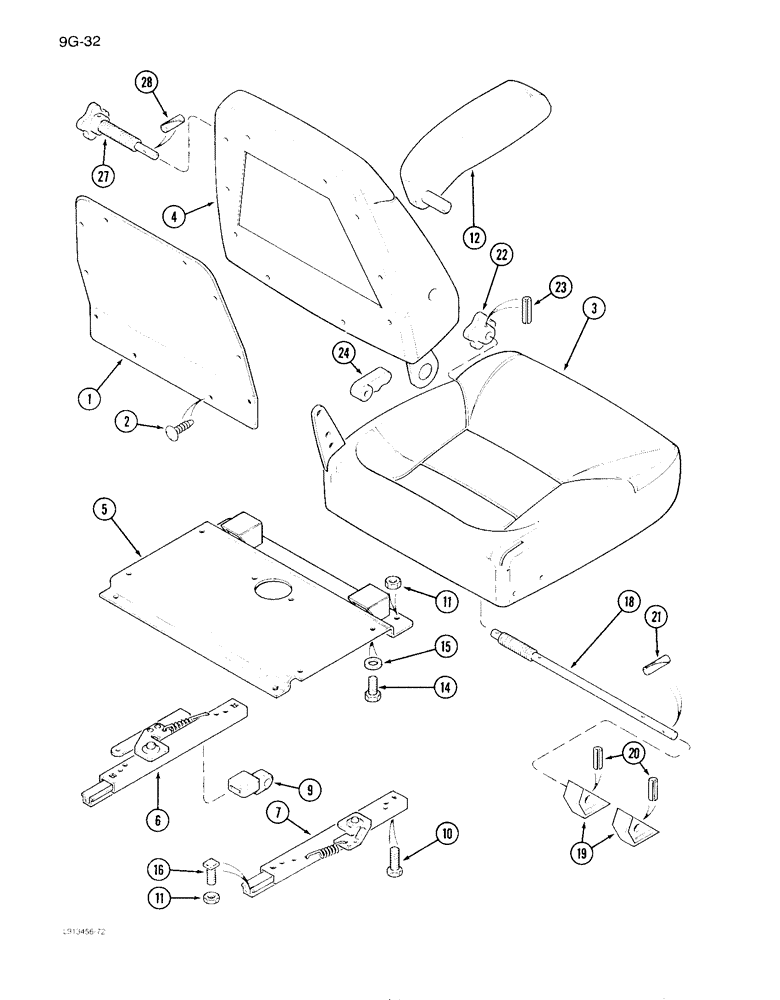

Схема запчастей Case IH 1640 - (9G-32) - SEAT, SEARS, MECHANICAL SUSPENSION, SERIAL NO. JJC0097001 & AFTER (10) - CAB & AIR CONDITIONING
12
22
27
20
3
28
7
11
6
1
18
5
10
21
11
24
19
15
9
11
4
28
16
16
14
2

Артикул

Название

Примечание

Количество

1990651C2

SEAT

ASSEMBLY - operators, mechanical suspension, Includes: Ref. 1 - 28

1шт.

1

1981820C1

PACKAGE, REPAIR

KIT - back cover service, Includes: Ref. 2

1шт.

2

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

3

1981815C1

PACKAGE, REPAIR

KIT - seat pad

1шт.

4

1981816C1

BACKREST

KIT - backrest pad

1шт.

5

1981868C1

SEAT SUPPORT

PLATE - slide adapter

1шт.

1344247C1

SLIDE

KIT - slide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - seat, with handle

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

9

1981829C1

WINDOW STAY

KNOB - fore/aft

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

12

1981818C1

ARMREST

KIT - arm rest, left

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

117-101

BOLT

BOLT - square head 5/16 x 3/4 inch

4шт.

1981813C2

PACKAGE, REPAIR

KIT - seat and backrest, Includes: Cushion Kit, Narrow Seat Shaft & Ref. 18 - 24

1шт.

1981856C2

PACKAGE, REPAIR

CUSHION KIT - seat and backrest, Includes: Narrow Seat Shaft & Ref. 18 - 24

1шт.

1343826C2

SHAFT ASSY.

SHAFT - seat, narrow, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

20

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

22

1981826C1

KNOB

- seat tilt

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

1987212C1

PACKAGE

KNOB KIT - seat, backrest tilt

1шт.

27

1981828C1

BUTTON

KNOB - lumbar

1шт.

28

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

Выбрано товаров: 28
