Запчасти Case IH 1640 (9G-18) - SEAT, BOSTROM (CONTD) (10) - CAB & AIR CONDITIONING

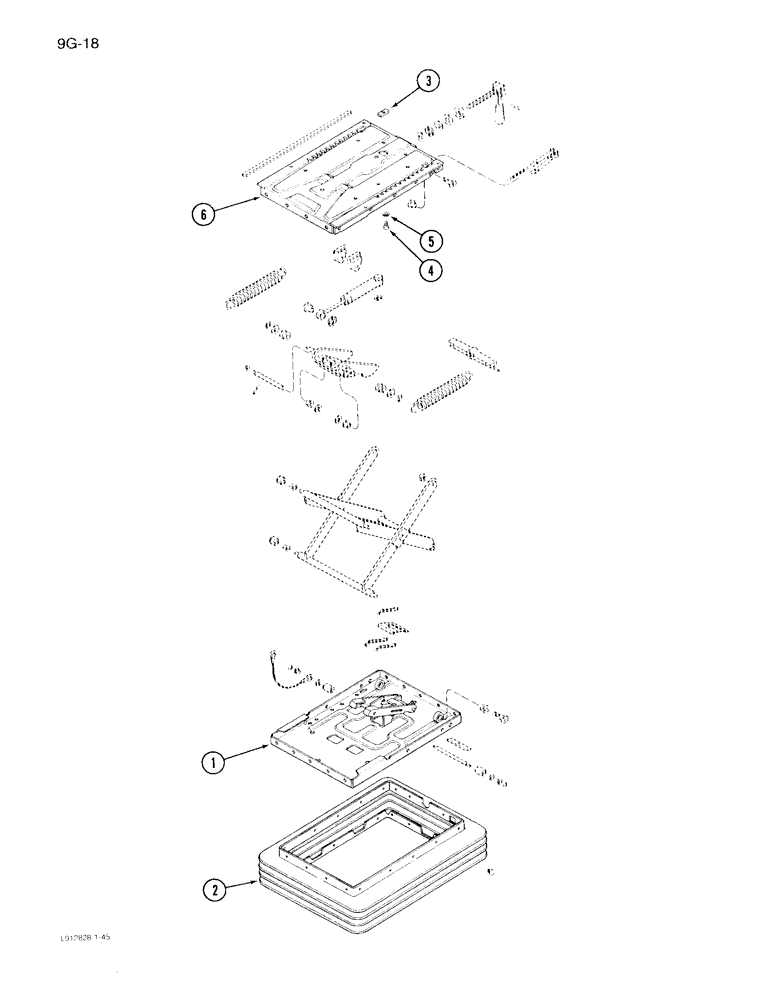

Схема запчастей Case IH 1640 - (9G-18) - SEAT, BOSTROM (CONTD) (10) - CAB & AIR CONDITIONING
3
4
5
6
2
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEAT ASSEMBLY - operator, continued

1шт.

1954465C1

KIT

SERVICE KIT - suspension, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SUSPENSION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

3

NSS

NOT SOLD SEPARAT

STOP - forward

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - stop retaining, 5 x 10 mm

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock, 5 mm

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDER - seat

2шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

1954469C1

KIT

SERVICE KIT - top, seat (Includes: Ref. 6) (Includes items on Figure 9G-17 and 19)

1шт.

1954471C1

KIT

SERVICE KIT - miscellaneous (Includes: Ref. 6) (Includes items on Figure 9G-17,19 and 21)

1шт.

Выбрано товаров: 11
