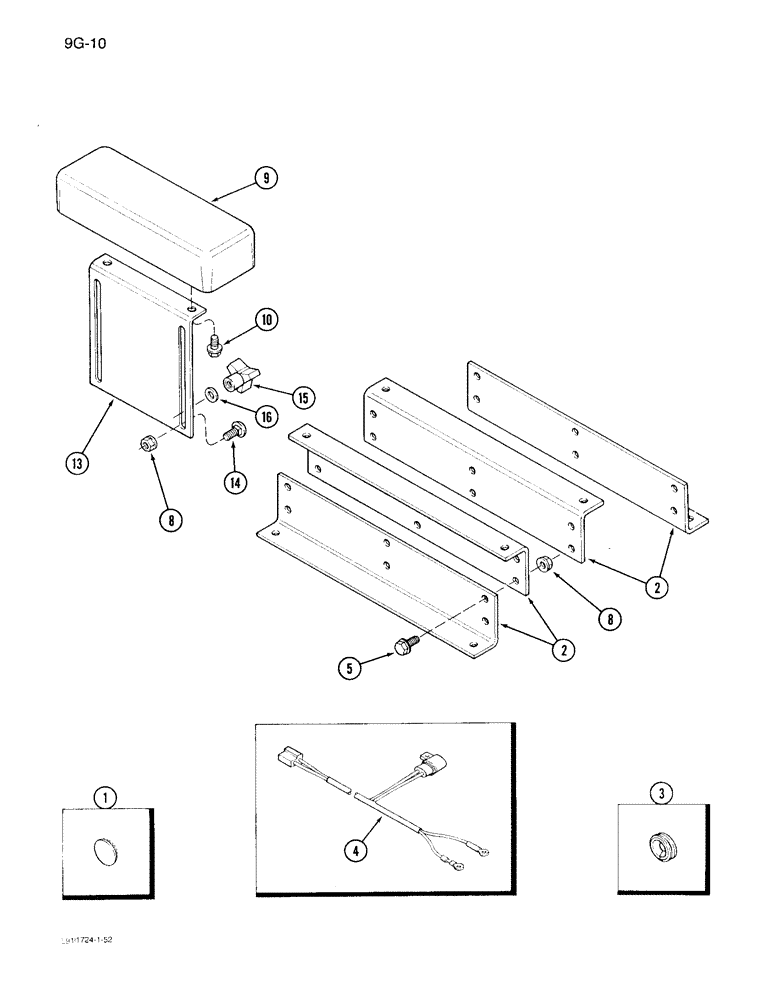

Запчасти Case IH 1640 (9G-10) - OPERATORS SEAT MOUNTING, BOSTROM AND GRAMMER SEAT (10) - CAB & AIR CONDITIONING

1

353-411

PLUG,Dome, 1.000" hole, Nylon

(Bostrom seat) Dome, 1.000" hole, Nylon

1шт.

2

98115C1

BRACKET

- seat mounting

4шт.

3

123548H

GROMMET

- Grammer seat

1шт.

4

91832C1

HARNESS

ASSEMBLY - seat (Grammer seat)

1шт.

5

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange, 5/16 NC x 3/4 inch

14шт.

8

1330064C1

FLANGE NUT

- flange lock, 5/16 inch NC

10шт.

9

1301216C3

ARMREST

ARM REST - seat

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

13

192999C1

SUPPORT

- arm rest mounting

1шт.

14

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

15

196970C1

KNOB

- arm rest

2шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.
