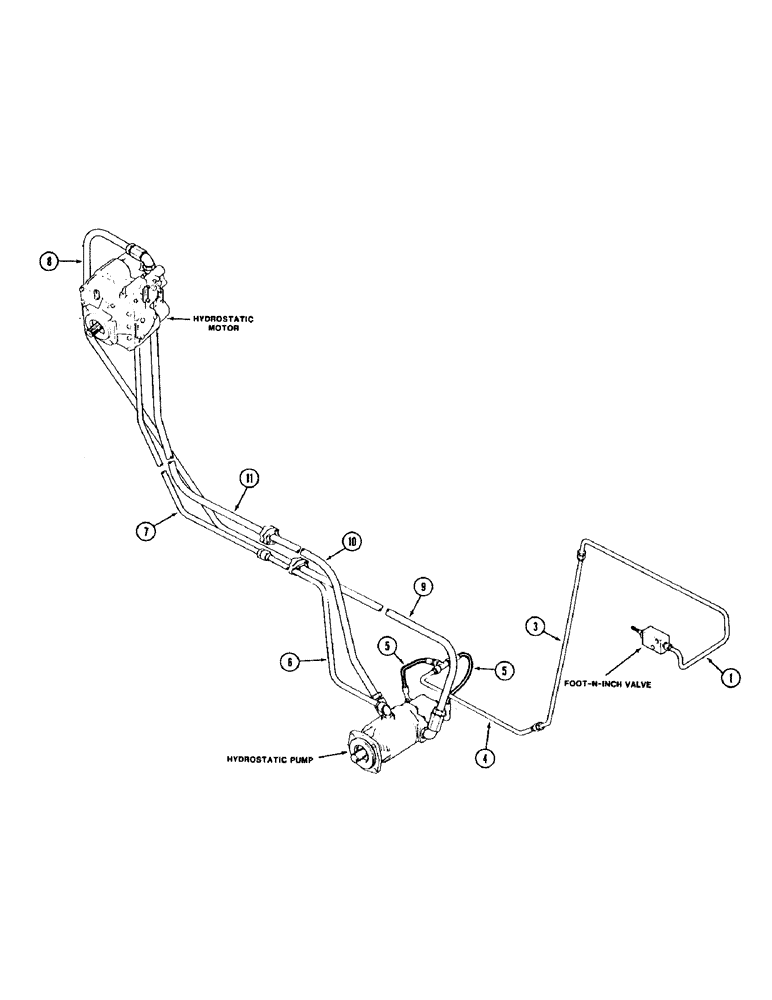

Запчасти Case IH 1640 (1-18) - PICTORIAL INDEX, PROPULSION SYSTEM (00) - PICTORIAL INDEX

1

Foot-N-Inch Upper Tube, Page 6-13

1шт.

3

Foot-N-Inch Center Tube, Page 6-13

1шт.

4

Foot-N-Inch Lower Tube, Page 6-13

1шт.

5

Foot-N-Inch Hose, Page 6-13

1шт.

6

Bleed Lower Tube, Page 6-7,9

1шт.

7

Bleed Upper Tube, Page 6-7,9

1шт.

8

Drive Reverse Upper Pressure Tube, Page 6-7,9

1шт.

9

Drive Reverse Lower Pressure Tube, Page 6-7,9

1шт.

10

Drive Forward Lower Pressure Tube, Page 6-7,9

1шт.

11

Drive Forward Upper Pressure Tube, Page 6-7,9

1шт.
