(9G-04) - RIGHT CONSOLE (CONTD)

Запчасти Case IH 1640 (9G-04) - RIGHT CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING

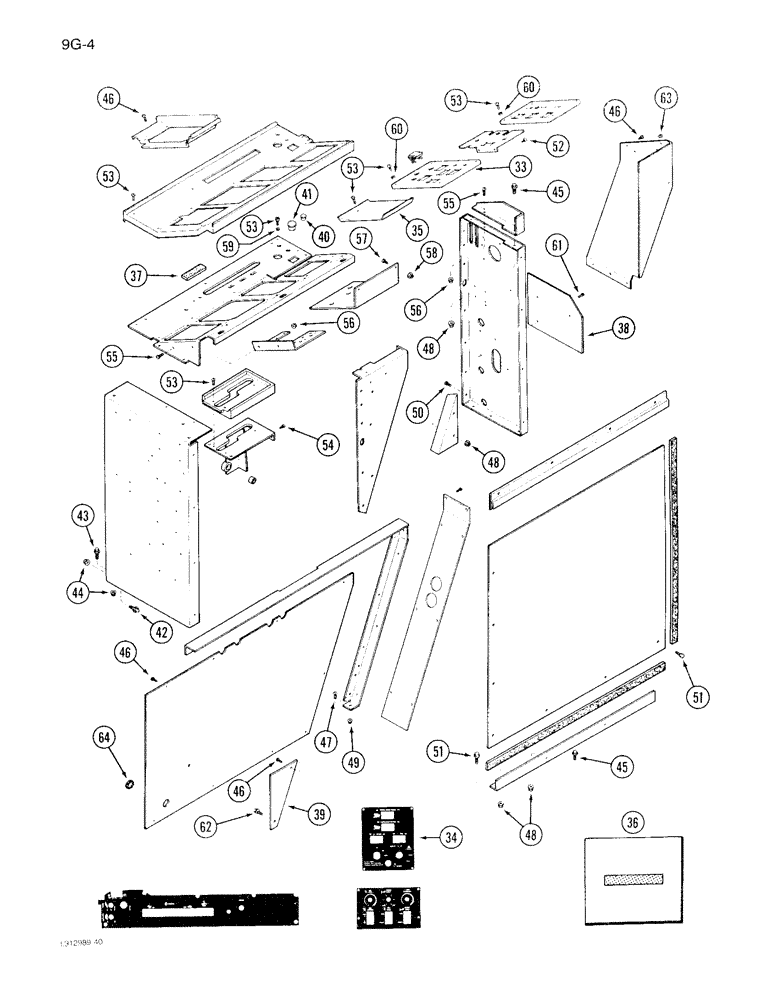

Схема запчастей Case IH 1640 - (9G-04) - RIGHT CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING
43
36
61
52
58
48
51
57
46
62
53
46
46
48
37
50
34
47
38
53
63
46
55
59
40
64
49
60
42
53
48
55
39
50
33
45
53
56
41
35
51
56
45
54
44
53
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33

1276211C1

PANEL

- machine control

1шт.

34

1280167C2

DECAL

- control panel, English

1шт.

34

1957290C1

DECAL

- control panel, French

1шт.

34

1957291C1

DECAL

- control panel, German

1шт.

34

1957292C1

DECAL

- control panel, Spanish

1шт.

35

187573C1

COVER

- fuse panel

1шт.

36

195917C1

GASKET

SEAL - bulk stock

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - right console cover, 3 inch

2шт.

38

1327985C1

PLATE

- hole cover, right front

1шт.

39

91705C1

PLATE

BAR - right console, lower

1шт.

40

353-402

PLUG,Dome, .375" hole, Nylon

- hole, 1/2 diameter

2шт.

41

183617C1

PLUG

- right console

1шт.

42

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange, 3/8 NC x 1 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

45

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

11шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head, No. 10 x 1/2 inch

34шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

14шт.

49

1254276C1

PUSH-ON NUT

- pal fastener

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - truss head, 5/16 NC x 3/4 inch

2шт.

51

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

52

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex tapping, 1/4 x 1/2 inch

10шт.

53

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head cross recessed, No. 10-16 x 3/4 inch

15шт.

54

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head tapping, 1/4 x 1/2 inch

4шт.

55

937875R1

SCREW,Serr, 1/4" - 20

BOLT - truss head, 1/4-20 x 3/4 inch

3шт.

56

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

3шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10-24 x 3/4 inch

4шт.

58

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24

4шт.

59

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

60

1270762C1

SELF-TAP SCREW

- pan head, No. 10-16 x 3/4 inch

4шт.

61

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

3шт.

62

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

1шт.

63

353-403

PLUG,Dome, .437" hole, Nylon

3шт.

64

353-254

PUSH BUTTON,1 1/4"

PLUG - button, 1-19/64 inch (Combine without grain tank level sensor)

1шт.
