Запчасти Case IH 1640 (9G-02) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING

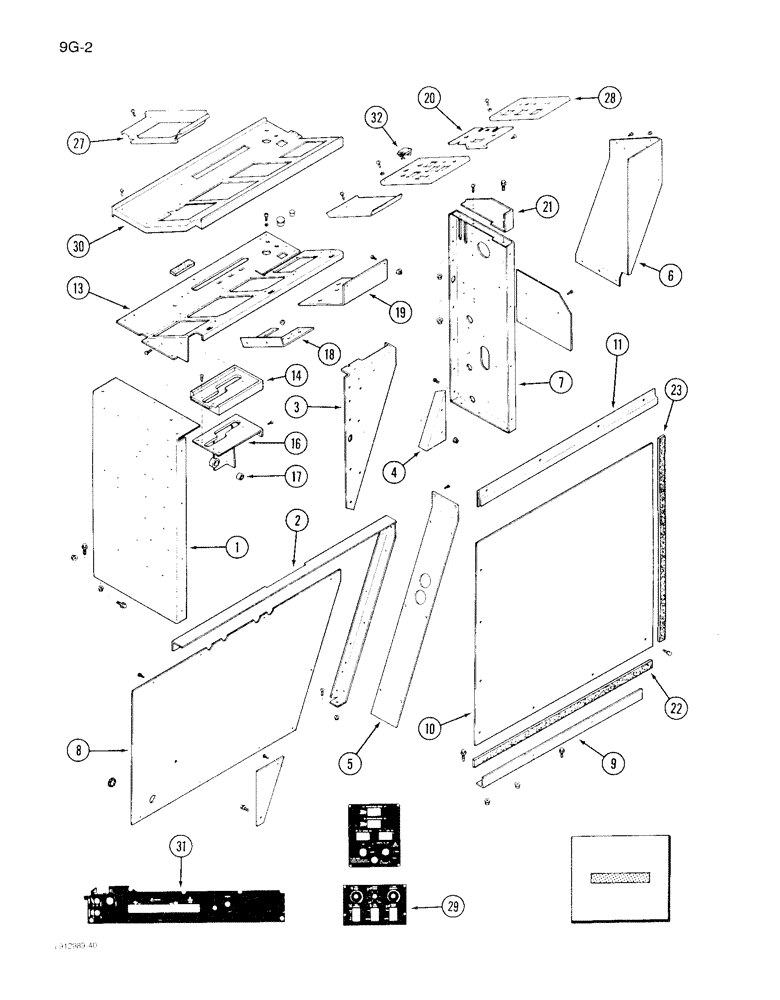

Схема запчастей Case IH 1640 - (9G-02) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING
21
6
13
3
9
8
20
22
28
19
33
31
17
4
23
29
2
11
5
16
10
1
14
32
18
7
27

Артикул

Название

Примечание

Количество

1

1321966C3

SUPPORT

- right console, rear

1шт.

2

193031C3

SUPPORT

ASSEMBLY - right console front

1шт.

3

195992C2

SUPPORT

- right console extension, right

1шт.

4

195991C1

SUPPORT

- right console extension, lower

1шт.

5

1317106C1

SUPPORT

- right console extension, front

1шт.

6

1283101C2

SUPPORT

- right console front extension, lower

1шт.

7

1987556C1

SUPPORT

- console, front (Replaces 193064C9)

1шт.

8

91704C1

PLATE

- right console inner

1шт.

9

193033C2

ANGLE

- right console lower, outer

1шт.

10

1301218C2

COVER

PLATE - right console, outer

1шт.

11

1301334C1

SUPPORT

- right outer cover

1шт.

13

1301210C6

SUPPORT

- right console, top

1шт.

14

198988C1

COVER

- hydrostatic drive console

1шт.

16

193277C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - hydrostatic drive

1шт.

17

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

- drive support (Replaces 165704C1)

1шт.

18

1280162C3

SUPPORT

- fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - back light machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - back light front control

1шт.

21

1327501C1

SUPPORT

- panel front

1шт.

22

NSS

NOT SOLD SEPARAT

STRIP - right console cover, 26-45/64 inch (Order 195917C1, Serial Range: cut-length)

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - right console cover, 27 inch (Order 195917C1, Serial Range: cut-length)

2шт.

27

1280125C1

FRAME

- front control panel

1шт.

28

1280158C2

PANEL

- front control

1шт.

29

1280159C1

DECAL

- header control panel

1шт.

30

87366C1

COVER

- right console instrument panel

1шт.

31

1327827C2

DECAL

- instructions, console control

1шт.

32

245334C1

PLUG

COVER - switch opening right side

5шт.

Выбрано товаров: 27
