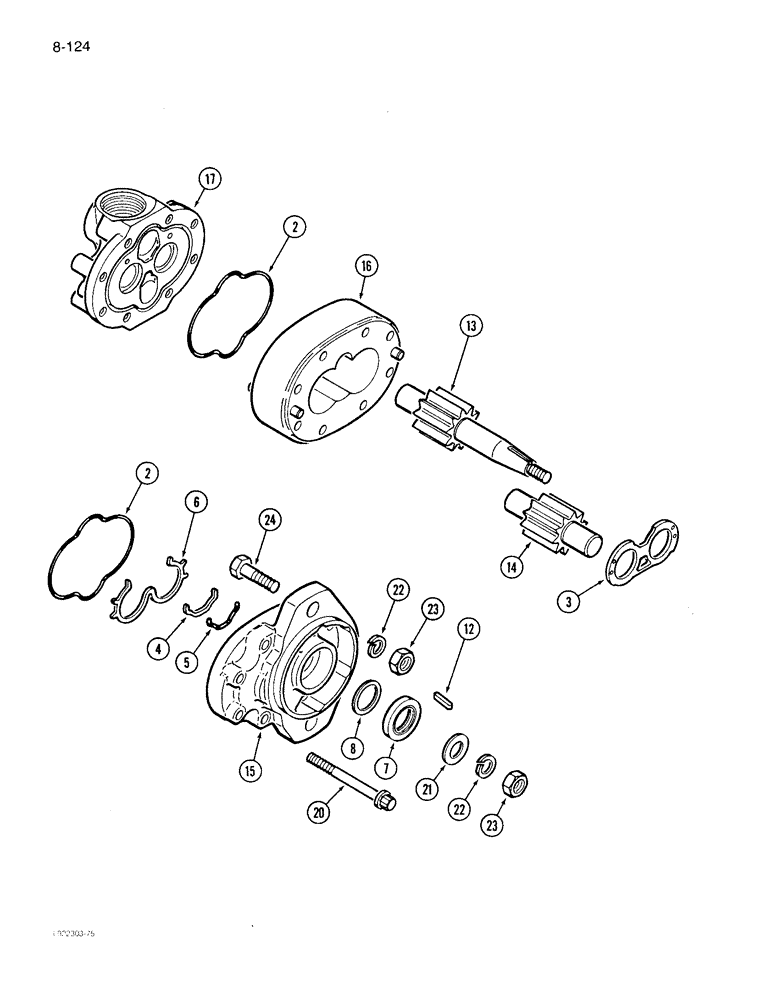

Запчасти Case IH 1640 (8-124) - REEL LIFT PUMP, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1341921C2

PUMP, HYDRAULIC

PUMP ASSEMBLY - reel lift, 15 GPM, Includes: Ref. 2 - 20

1шт.

Part number stamped on part.

1шт.

1272638C2

SEAL KIT

KIT - seal, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - back-up

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

12

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pump retaining

8шт.

21

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- 17/32 x 1 x 3/64 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

425-106

NUT,3/8"-16, Cl 5

3шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.
