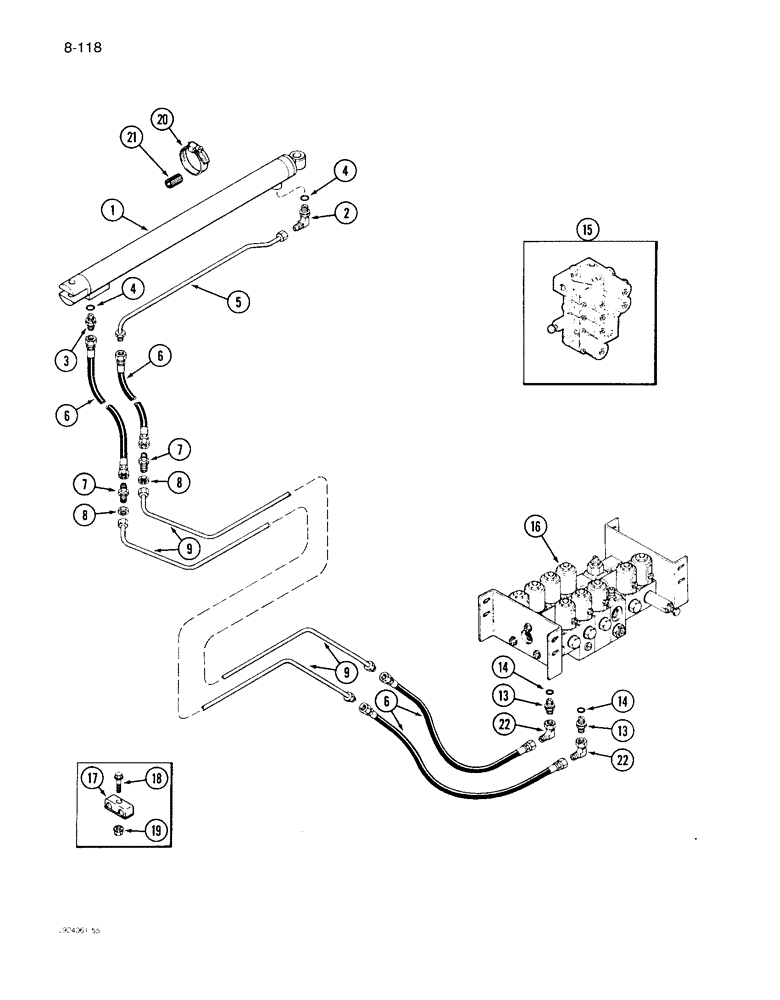

Запчасти Case IH 1640 (8-118) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - unloader swing (See Figure 8-120)

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 1/4 inch tube 7/16-20 thread

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - short, 1/4 inch tube 7/16-20 thread

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

5

1317623C1

HYD TUBE,0.25" OD, 480, 45 mm Length

TUBE ASSEMBLY - unloader swing cylinder

1шт.

6

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Unloader Swing 0.25" ID x 20.00", SAE 100R1

4шт.

7

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - bulkhead, 1/4 inch tube 7/16-20 thread

2шт.

8

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, lock, bulkhead, 7/16 inch NF

2шт.

9

196751C1

UNLOADING TUBE

TUBE ASSEMBLY - unloader swing cylinder

2шт.

13

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-052 or 8-056)

1шт.

Prior to P.I.N. JJC0097190.

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-54 or 58)

1шт.

P.I.N. JJC0097190 and After.

1шт.

17

183824C1

CLAMP

- unloader swing tubes

2шт.

18

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

- hex head flange, 1/4 NC x 1 inch

2шт.

19

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

2шт.

20

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose, No. 32, Type F

1шт.

21

163489C1

STRIP

- clamp

1шт.

22

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel flare

2шт.
