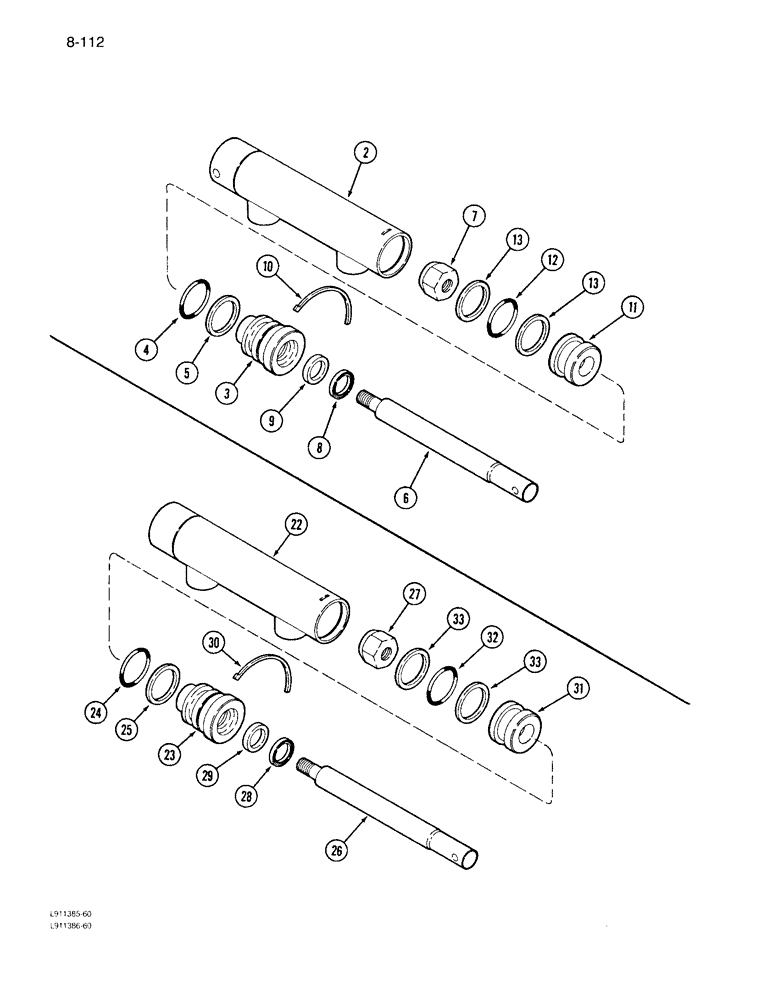

Запчасти Case IH 1640 (8-112) - FEEDER CLUTCH CYLINDER (07) - HYDRAULICS

133405C92

CYLINDER

ASSEMBLY - feeder clutch, Includes: Ref. 2 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

1640 CASE IH AXIAL-FLOW COMBINE (S/N JJC0034705 & AFTER) (NORTH AMERICA), P.I.N. JJC0034705 AND AFTER, Assembly feeder (1/86-12/92)

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

108641C1

GLAND

HEAD - front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

6

108639C1

PISTON ROD

ROD - piston

1шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

2шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - o-ring and seal service, Includes: Ref. 4, 5, 8, 9, 10, 12 and 13

1шт.

1346042C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - separator clutch, Includes: Ref. 22 - 33

1шт.

Part number stamped on part.

1шт.

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - separator clutch, Includes: Ref. 22 - 33

1шт.

Part number stamped on part.

1шт.

22

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder, separator clutch

1шт.

23

108641C1

GLAND

HEAD - front, separator clutch cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, separator clutch cylinder

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup, separator clutch cylinder

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

26

108639C1

PISTON ROD

ROD - piston (Used with 133408C92), separator clutch cylinder

1шт.

26

1979793C1

PISTON ROD

ROD - piston (Used with 1346042C1), separator clutch cylinder

1шт.

27

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Separator clutch cylinder 5/8"-11, GC

1шт.

28

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal, separator clutch cylinder

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane, separator clutch cylinder

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

30

NSS

NOT SOLD SEPARAT

WIRE - retaining, separator clutch cylinder

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

31

108640C2

PISTON

- cylinder, separator clutch

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, separator clutch cylinder

1шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup, separator clutch cylinder

2шт.

Part of O-Ring and seal service kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - o-ring and seal service, Includes: Ref. 24, 25, 28, 29, 30, 32 and 33, separator clutch cylinder

1шт.
