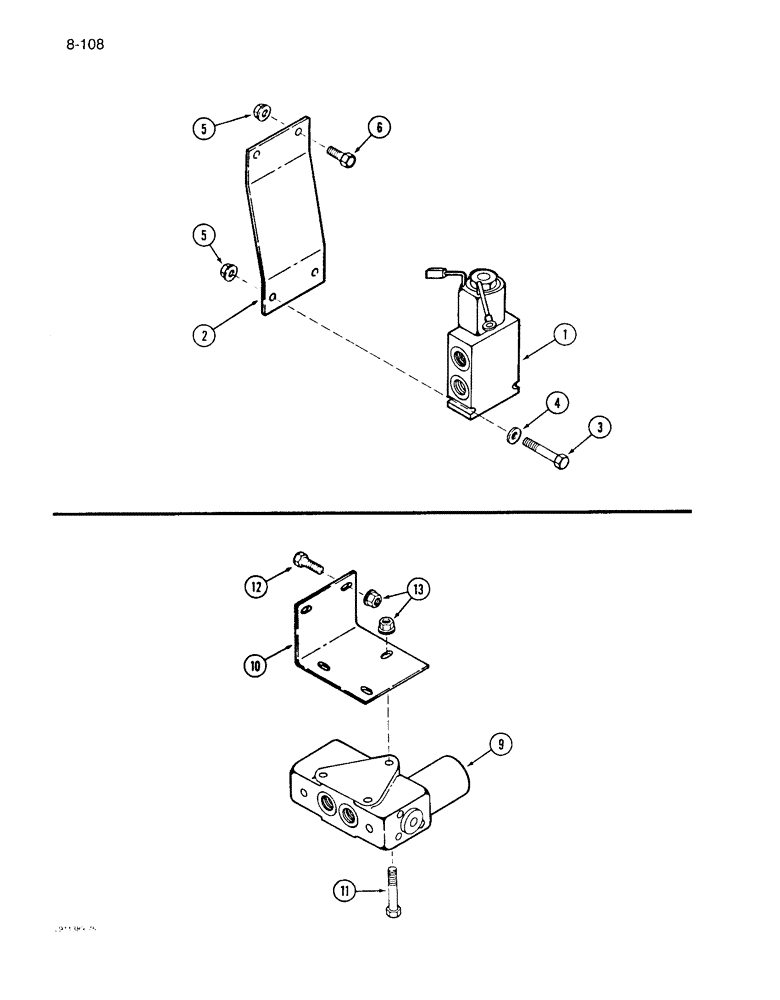

Запчасти Case IH 1640 (8-108) - SEPARATOR CLUTCH VALVE MOUNTING, MODULAR CONTROLS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, Modular Controls (See Figure 8-110)

1шт.

2

187506C1

SUPPORT

- separator clutch valve

1шт.

3

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

4

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 5/32 inch

2шт.

5

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

4шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, Control Concepts (See Figure 8-110)

1шт.

10

1301037C1

ANGLE

SUPPORT - separator clutch valve, control concepts

1шт.

11

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Control concepts Hex, 1/4"-20 x 2 1/4", G5

3шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Control concepts

2шт.

13

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC, control concepts

5шт.
