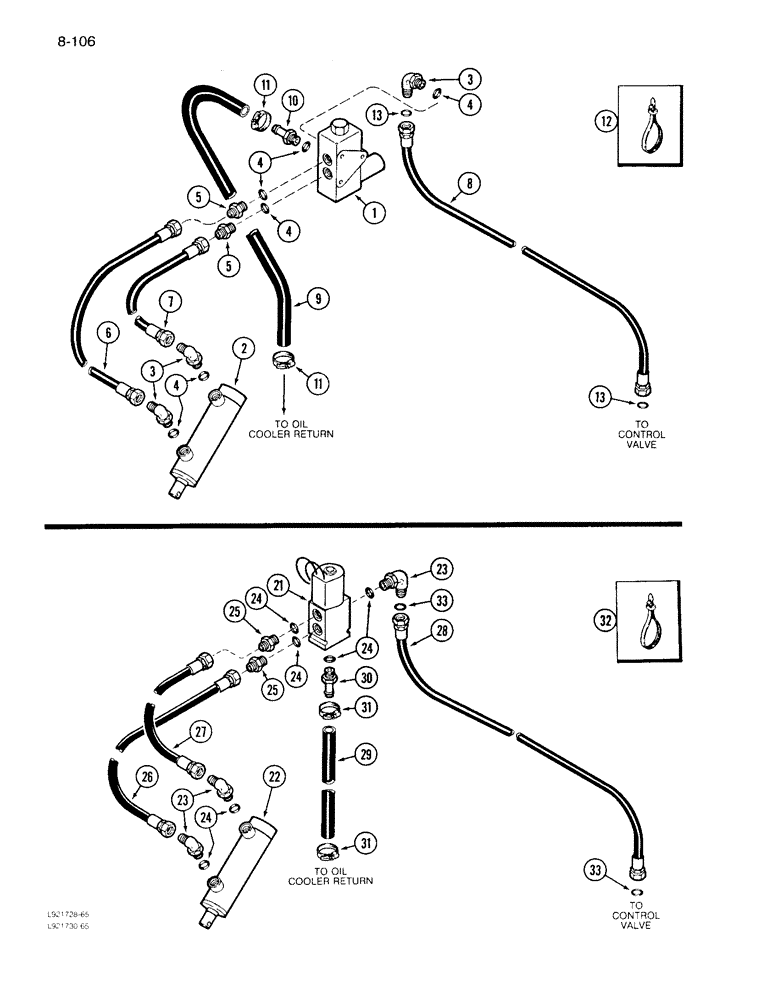

Запчасти Case IH 1640 (8-106) - SEPARATOR CLUTCH SYSTEM, SERIAL NO. JJC0097190 & AFTER, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, Control Concepts (See Figure 8-110)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Figure 8-112)

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face x 9/16-18 inch adj O-ring

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 thread

2шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Assy - Separator clutch disengage 9.52 mm ID x 535.00 mm

1шт.

7

1285380C2

HYDRAULIC HOSE

HOSE ASSEMBLY - separator clutch engage

1шт.

8

1541716C1

HOSE

ASSEMBLY - separator clutch pressure

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - separator clutch return, 3/8 x 22 inch

1шт.

Order 180730C1 and cut to length

1шт.

10

178036C1

CONNECTOR, ELEC

FITTING - beaded tube, 3/8 inch ID hose

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, #4, 0.25/0.62 Type M Worm

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, Modular Controls (See Figure 8-110)

1шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Page 8-113), modular controls

1шт.

23

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face x 9/16-18 inch adj O-ring, modular controls

1шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 thread

2шт.

26

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Assy - Separator clutch disengage, Modular controls 9.52 mm ID x 535.00 mm

1шт.

27

1285380C2

HYDRAULIC HOSE

HOSE ASSEMBLY -separator clutch engage, modular controls

1шт.

28

1541716C1

HOSE

ASSEMBLY - separator clutch pressure, modular controls

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - separator clutch return, 3/8 x 22 inch, modular controls

1шт.

Order 180730C1 and cut to length

1шт.

30

178036C1

CONNECTOR, ELEC

FITTING - beaded tube, 3/8 inch ID hose, modular controls

1шт.

31

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Modular controls #4, 0.25/0.62 Type M Worm

2шт.

32

702093C1

CABLE TIE

STRAP - retaining, nylon, modular controls

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Modular controls -012, 90 Duro, .364" ID x .070" Thk

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD

6шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD, Modular controls

6шт.
