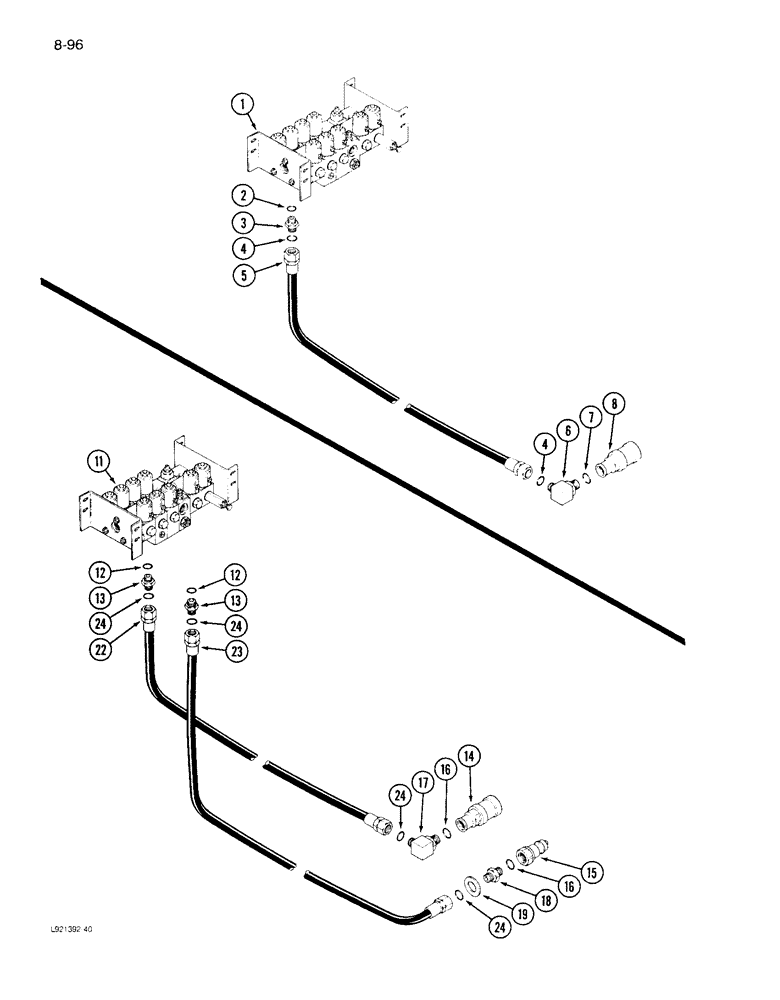

Запчасти Case IH 1640 (8-096) - REEL LIFT SYSTEM, SERIAL NO. JJC0097190 & AFTER (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - control, Reel Lift System (See Figure 8-054 or 8-058)
1шт.
2
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube
1шт.
3
201-125
HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB
ADAPTOR - straight, 11/16-16 face seal x 7/16-20 inch O-ring
1шт.
4
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
5
1989470C1
HOSE
ASSEMBLY - reel lift, 2795 mm
1шт.
6
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
- 90 degree adjustable
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 5/8 inch OD tube
1шт.
8
REF
INSTRUCTION
COUPLING ASSEMBLY - self-sealing female (See Figure 8-050)
1шт.
11
REF
INSTRUCTION
VALVE ASSEMBLY - control, Reel Fore & Aft System (See Figure 8-58)
1шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube, Reel fore and aft system
2шт.
13
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring, Reel Fore and Aft System
2шт.
14
REF
INSTRUCTION
COUPLING ASSEMBLY - self sealing female (See Figure 8-050), Reel Fore and Aft System
1шт.
15
REF
INSTRUCTION
COUPLING ASSEMBLY - self sealing male (See Figure 8-050), Reel Fore and Aft System
1шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 5/8 inch OD tube, Reel Fore and Aft System
2шт.
17
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
- 90 degree adjustable, Reel Fore and Aft System
1шт.
18
201-139
HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB
CONNECTOR - straight, Reel Fore and Aft System
1шт.
19
1541792C1
WASHER
WASHER - red, Reel Fore and Aft System
1шт.
22
1989470C1
HOSE
ASSEMBLY - reel lift, 2795 mm, Fore and Aft System
1шт.
23
1989471C1
HOSE
ASSEMBLY - reel aft, 3810 mm, Fore System
1шт.
24
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system -012, 90 Duro, .364" ID x .070" Thk
4шт.
