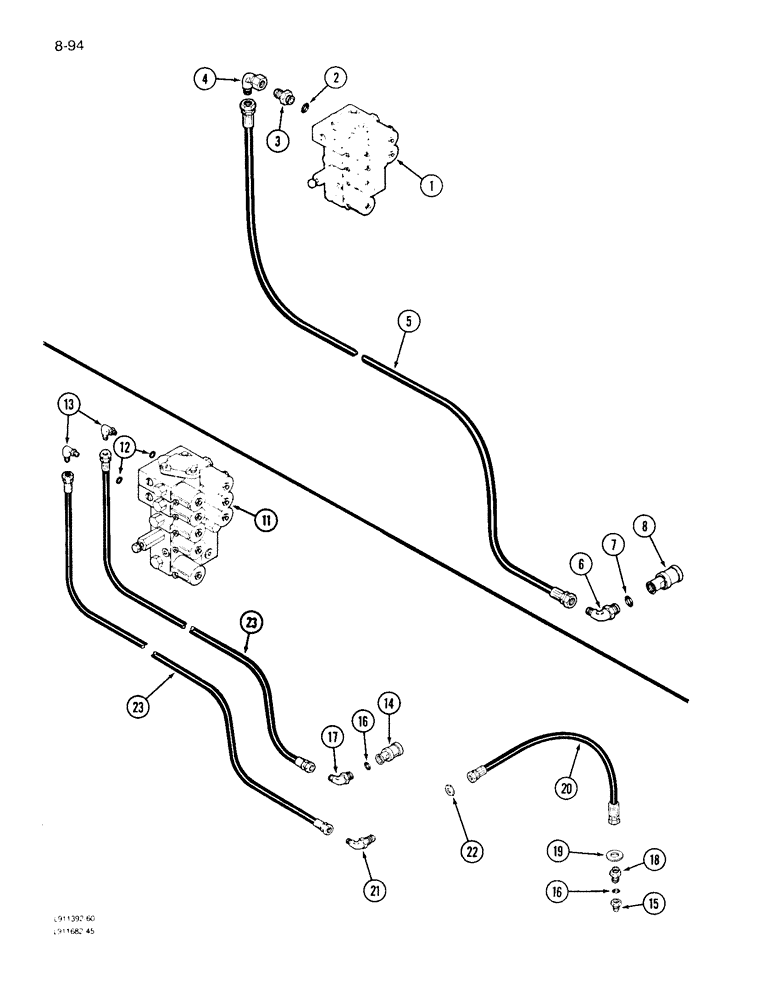

Запчасти Case IH 1640 (8-094) - REEL LIFT SYSTEM, PRIOR TO SERIAL NO. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, Reel Lift System (See Figure 8-056)

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - short, 9/16-18 x 7/16-20 thread

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 inch tube 9/16-18 thread

1шт.

5

1321591C1

HOSE

ASSEMBLY - , reel lift, 5/16 x 94-1/2 inch

1шт.

Prior to P.I.N. JJC0039757

1шт.

5

1284291C1

HYDRAULIC HOSE

ASSEMBLY - reel lift, 1/4 x 95 inch

1шт.

P.I.N. JJC0039757 through JJC0097189

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 deg, 9/16-18 flare x 7/8-14 inch adj O-ring boss

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing female (See Figure 8-050)

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - control, Reel Fore & Aft System (See Figure 8-056), prior to P.I.N. JJC0091790

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube, Reel fore and aft system, prior to P.I.N. JJC0097190

2шт.

13

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 x 9/16-18 inch thread, Reel Fore and Aft System, prior to P.I.N. JJC0097190

2шт.

14

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-050), Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

15

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-050), Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube, Reel Fore and Aft System, prior to P.I.N. JJC0097190

2шт.

17

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 x 7/8-14 inch thread, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

18

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

19

1327631C1

WASHER

- red, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

20

1327608C1

HOSE

ASSEMBLY - hydraulic, 5/16 x 134 inch, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

Prior to P.I.N. JJC0039757

1шт.

20

1254526C2

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/4 x 134 inch, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

P.I.N. JJC0039757 through JJC0097189

1шт.

21

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree bulkhead, 9/16-18 inch thread, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

22

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulk head union lock, 9/16-18 inch thread, Reel Fore and Aft System, prior to P.I.N. JJC0097190

1шт.

23

1321591C1

HOSE

ASSEMBLY - hydraulic, 5/16 x 95 inch, Reel Fore and Aft System, prior to P.I.N. JJC0097190

2шт.

Prior to P.I.N. JJC0039757

1шт.

23

1284291C1

HYDRAULIC HOSE

ASSEMBLY - hydraulic, 1/4 x 95 inch, Reel Fore and Aft System, prior to P.I.N. JJC0097190

2шт.

P.I.N. JJC0039757 through JJC0097189

1шт.
