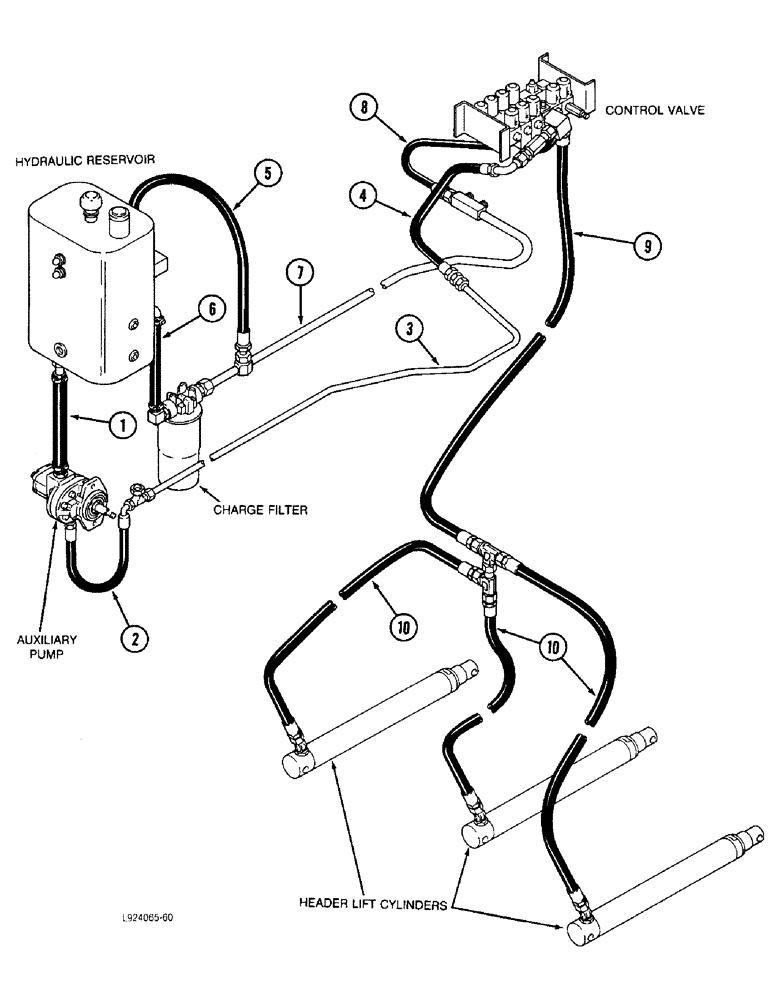

Запчасти Case IH 1640 (1-14) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Header Lift Suction Hose, Page 8-29

1шт.

2

Auxiliary Pump Pressure Hose, Page 8-29

1шт.

3

Header Lift Pressure Tube, Page 8-29

1шт.

4

Lift Pressure Hose, Page 8-29

1шт.

5

Relief Valve Drain Hose, Page 8-33

1шт.

6

Reservoir to Filter Return Hose, Page 8-33

1шт.

7

Valve Return Tube, Page 8-33

1шт.

8

Valve Drain Hose, Page 8-33

1шт.

9

Header Lift Cylinder Supply Hose, Page 8-45

1шт.

10

Header Lift Cylinder Hose, Page 8-45

1шт.
