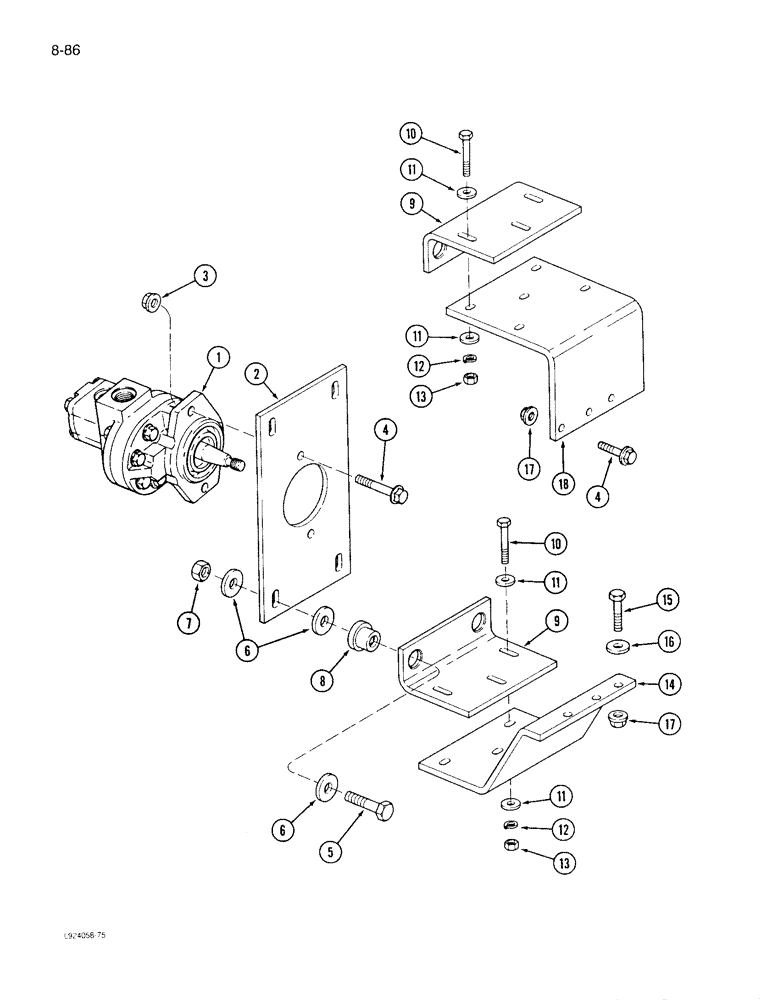

Запчасти Case IH 1640 (8-086) - AUXILIARY PUMP, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1

1994653C2

PUMP

ASSEMBLY - auxiliary, header lift and reel drive, Includes: Kits Listed Below

1шт.

1994653C2R

REMAN-HYD PUMP

1640 P.I.N JJC0034705 & Aft. Auxillary Pump P.I.N. JJC0097190 & Aft. (1/86 -12/92)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1543179C1

SEAL KIT

KIT - seal, pump

1шт.

1543180C1

PACKAGE, REPAIR

KIT - seal, relief valve

1шт.

1543181C1

PACKAGE, REPAIR

KIT - flow control valve

1шт.

1543182C1

PUMP, HYDRAULIC

KIT - front pump

1шт.

1543183C1

PACKAGE, REPAIR

KIT - rear pump

1шт.

1543196C1

SEAL KIT

KIT - shaft seal

1шт.

2

1541733C1

LARGE PLATE

SUPPORT - auxiliary pump

1шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

4

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex flange, 1/2 NC x 1-1/2 inch

2шт.

5

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

4шт.

6

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

12шт.

7

231-4118

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch

4шт.

8

R29799

SHOCK ABSORBER

ISOLATOR - mount

4шт.

9

1541732C1

SUPPORT ASSY.

SUPPORT - isomount, auxiliary pump

2шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

6шт.

11

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

12шт.

12

492-11038

LOCK WASHER,3/8"

6шт.

13

425-106

NUT,3/8"-16, Cl 5

6шт.

14

1541737C1

SUPPORT

- lower isomount

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

3шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

18

1541736C1

SUPPORT

- upper isomount

1шт.
