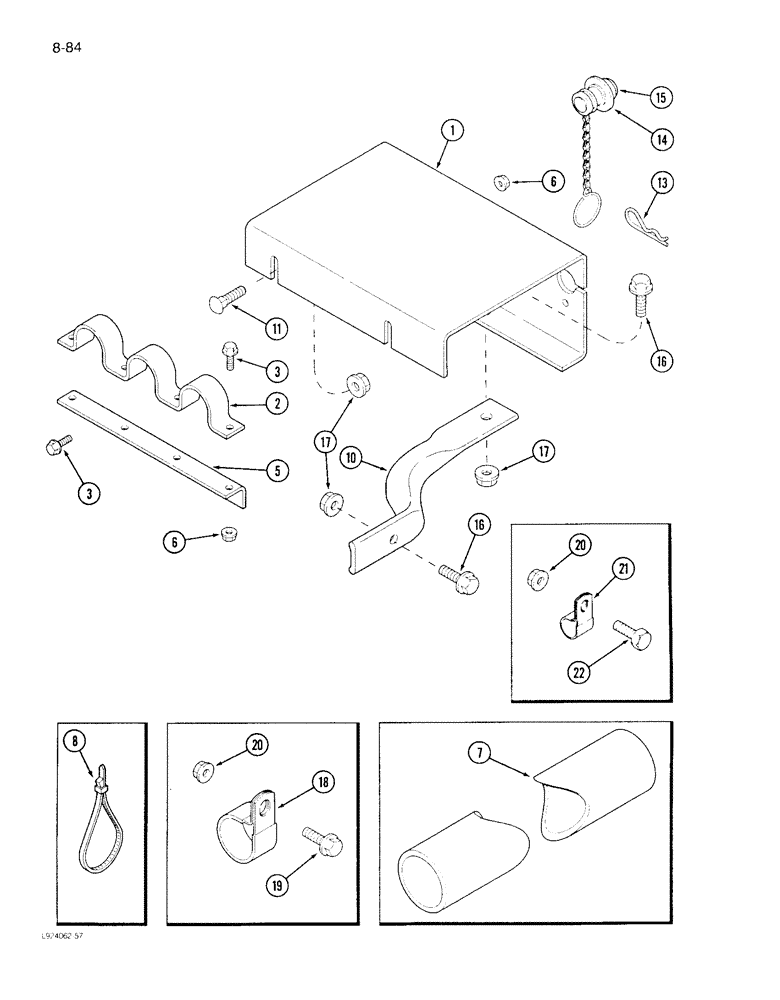

Запчасти Case IH 1640 (8-084) - AUXILIARY PUMP, COUPLING MOUNTING, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1

1957656C2

SUPPORT

- feeder hoses

1шт.

2

1321990C1

CLAMP

- ISO coupling

1шт.

3

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flange, 1/4 NC x 3/4 inch

6шт.

5

1321989C2

SUPPORT

- coupling

1шт.

6

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

6шт.

7

1989500C1

SLEEVE

- hose, cordura

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

2шт.

10

1989477C1

SUPPORT

- feeder hoses

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

13

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

4шт.

14

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, Includes: Ref. 15

1шт.

15

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug

1шт.

16

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

18

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

3шт.

19

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

21

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- P, 3/4 inch diameter

1шт.

22

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

1шт.
