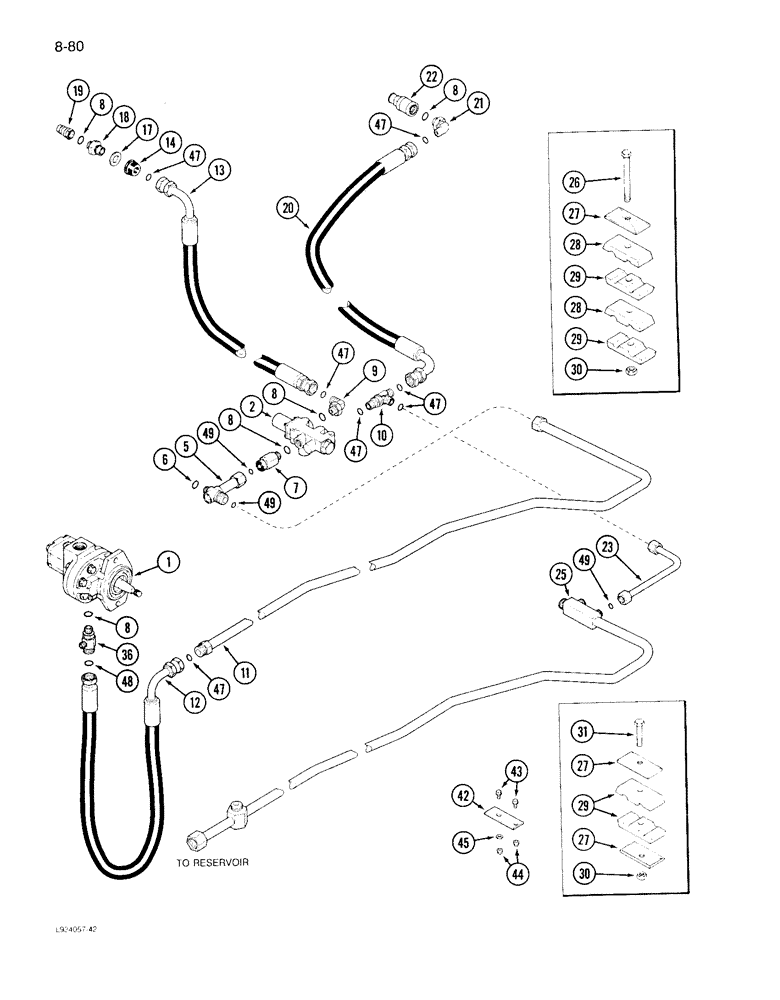

Запчасти Case IH 1640 (8-080) - REEL DRIVE SYSTEM, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-086)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive (See Figure 8-088)

1шт.

5

1541633C2

TEE

- branch, feeder clutch valve

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

1541634C1

VALVE

- relief, pressure regulator

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face x 7/8-14 inch adj O-ring boss

1шт.

10

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 1-14 face branch x face x 7/8-14 inch adj O-ring

1шт.

11

1541753C2

HYD TUBE,0.75" OD, 2225, 367 mm Length

TUBE ASSEMBLY - reel drive valve supply

1шт.

12

1980050C2

HOSE,15.88mm ID x 737mm L

ASSEMBLY - reel, Serial Range: pump-valve

1шт.

13

1989495C1

HOSE

ASSEMBLY - reel motor supply

1шт.

14

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- reel drive pressure hose

1шт.

17

1345266C1

WASHER

- white

1шт.

18

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

1шт.

19

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-050)

1шт.

20

1989496C1

HOSE

ASSEMBLY - reel drive motor return

1шт.

21

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face x 7/8-14 inch adj O-ring boss

1шт.

22

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-050)

1шт.

23

1989476C1

HYD TUBE

TUBE ASSEMBLY - reel drive return

1шт.

25

1989283C1

HYD TUBE

TUBE ASSEMBLY - valve return

1шт.

26

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 x 4 inch

1шт.

27

1347127C1

PLATE

- hose clamp

4шт.

28

1347072C1

CLAMP

- tube retaining, 1 x 3/4 inch

1шт.

29

1989362C1

CLAMP

- tube

3шт.

30

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

36

1541827C1

TEE

- separator clutch

1шт.

42

196868C2

SUPPORT

PLATE - support

1шт.

43

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

44

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

45

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

47

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

48

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
