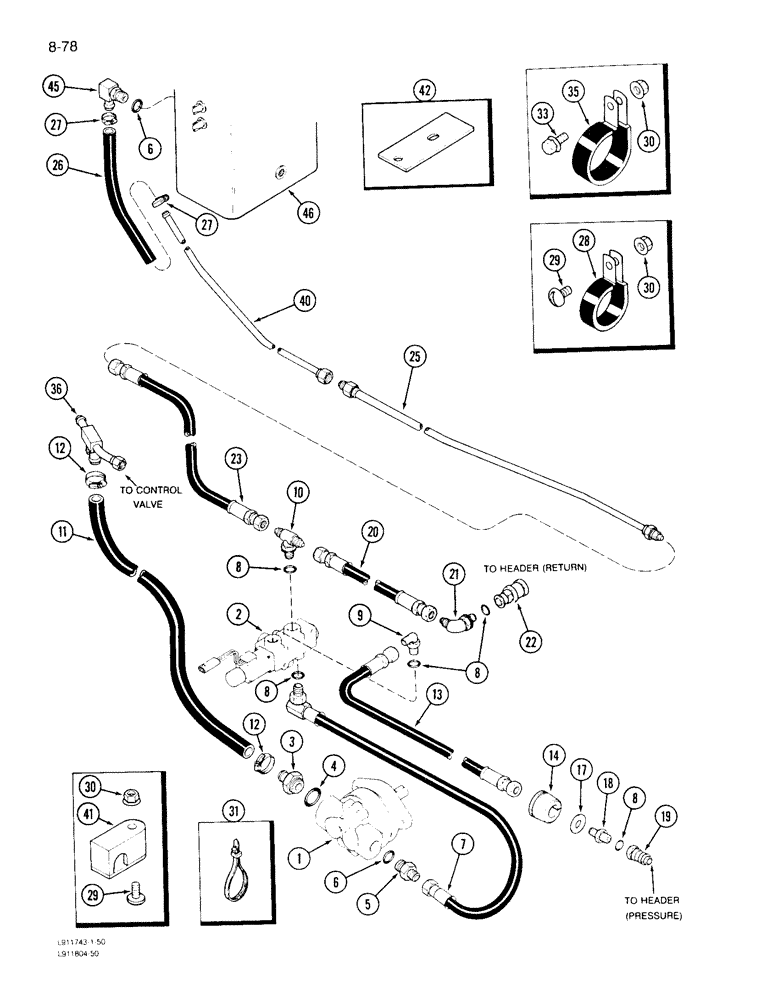

Запчасти Case IH 1640 (8-078) - REEL DRIVE SYSTEM, P.I.N. JJC0097171 THROUGH JJC0097189 (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-122)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive (See Figure 8-088)

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, 7/8-14 x 1-1/16-12 inch thread

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 35 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 3/4-16 x 7/8-14 inch thread

1шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- adjustable, 7/8-14 inch thread

1шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE - reel drive suction 98 inch

1шт.

12

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

2шт.

13

1254574C2

HYDRAULIC HOSE

HOSE - reel drive pressure

1шт.

14

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- reel drive pressure hose

1шт.

17

1345266C1

WASHER

- white

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- short 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

19

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-050)

1шт.

20

1327616C1

HOSE

ASSEMBLY - reel drive return, 5/8 inch ID x inch (47 inch feeder)

1шт.

20

1327579C1

HOSE

ASSEMBLY - return, 12 inch (54-1/2 inch feeder)

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread

1шт.

22

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-050)

1шт.

23

1327576C1

HOSE

- return, 82 inch

1шт.

25

1322386C1

PIPE

TUBE ASSEMBLY - reel drive return front

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - return, 18 inch (Order S118576, Serial Range: cut-length)

1шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adj, 11/16 - 1-1/4 inch diameter

2шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon 14 in

1шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

35

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

3шт.

36

1310757C1

TUBE

- header lift and steering return

1шт.

40

196746C1

HYD TUBE

TUBE - reel drive

1шт.

41

183822C1

CLAMP

- tube, single, 5/8 inch OD tube

3шт.

42

196868C2

SUPPORT

PLATE - support

1шт.

45

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Barb end

1шт.

46

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-002)

1шт.
