Запчасти Case IH 1640 (8-076) - REEL DRIVE SYSTEM, PRIOR TO P.I.N. JJC0097171 (07) - HYDRAULICS

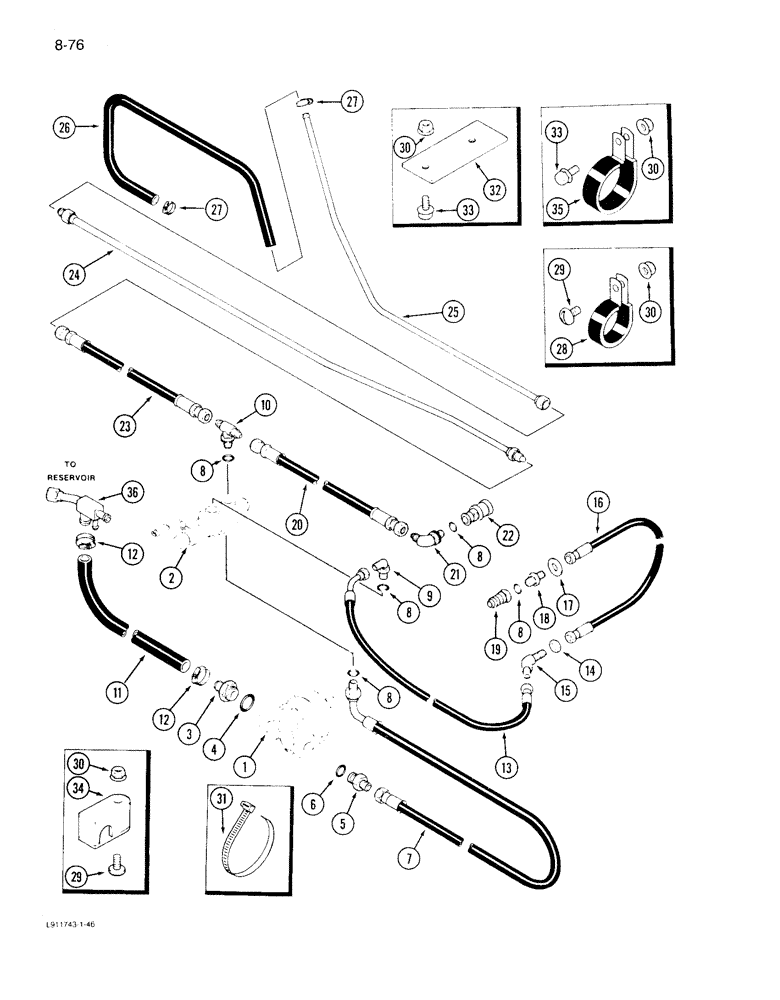

Схема запчастей Case IH 1640 - (8-076) - REEL DRIVE SYSTEM, PRIOR TO P.I.N. JJC0097171 (07) - HYDRAULICS
12
35
28
31
27
8
8
36
15
29
33
23
8
30
26
6
2
13
33
9
27
30
4
32
30
8
8
19
16
20
30
22
1
34
7
3
14
25
29
5
18
11
24
12
10
21
17

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-122)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive (See Figure 8-088)

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

REDUCER - short, 3/4 inch tube

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

1шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

ASSEMBLY - reel pump pressure, 1/2 ID x 35 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD

5шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring

1шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- adjustable, 5/8 inch OD tube

1шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE ASSEMBLY - reel drive suction, 1 ID x 98 inch

1шт.

12

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose, No. 16, Type F

2шт.

13

1254574C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 60 inch

1шт.

14

9403294

NUT

- bulkhead union lock, 1/2 tube 3/4-16 inch thread

1шт.

15

1321284C1

FITTING

ADAPTER - 45 degree bulkhead

1шт.

16

1327580C1

HOSE

- reel drive header pressure, 40 inch, Serial Range: (feeder-header)

1шт.

17

1327632C1

WASHER

- white

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

19

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-050)

1шт.

20

1327616C1

HOSE

ASSEMBLY - reel drive return, 5/8 inch ID x inch steering return and reel drive suction

1шт.

20

1327579C1

HOSE

ASSEMBLY - reel drive return, 5/8 ID x 12 inch (54-1/2 inch feeder)

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 5/8 tube 7/8-14 thread

1шт.

22

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-050)

1шт.

23

1327576C1

HOSE

ASSEMBLY - return, 5/8 ID x 82 inch

1шт.

24

1322386C1

PIPE

TUBE ASSEMBLY - reel drive return front

1шт.

25

196746C1

HYD TUBE

TUBE ASSEMBLY - reel drive return rear

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - 5/8 ID x 18 inch (Order 180719C1 and, Serial Range: cut-length)

1шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

28

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- pressure hose

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon 14 in

10шт.

32

1338281C1

BRACKET

SUPPORT - tube

1шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

34

183822C1

CLAMP

- return tubes

3шт.

35

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- suction hose

3шт.

36

1310757C1

TUBE

ASSEMBLY - header lift return, steering return and reel drive suction

1шт.
