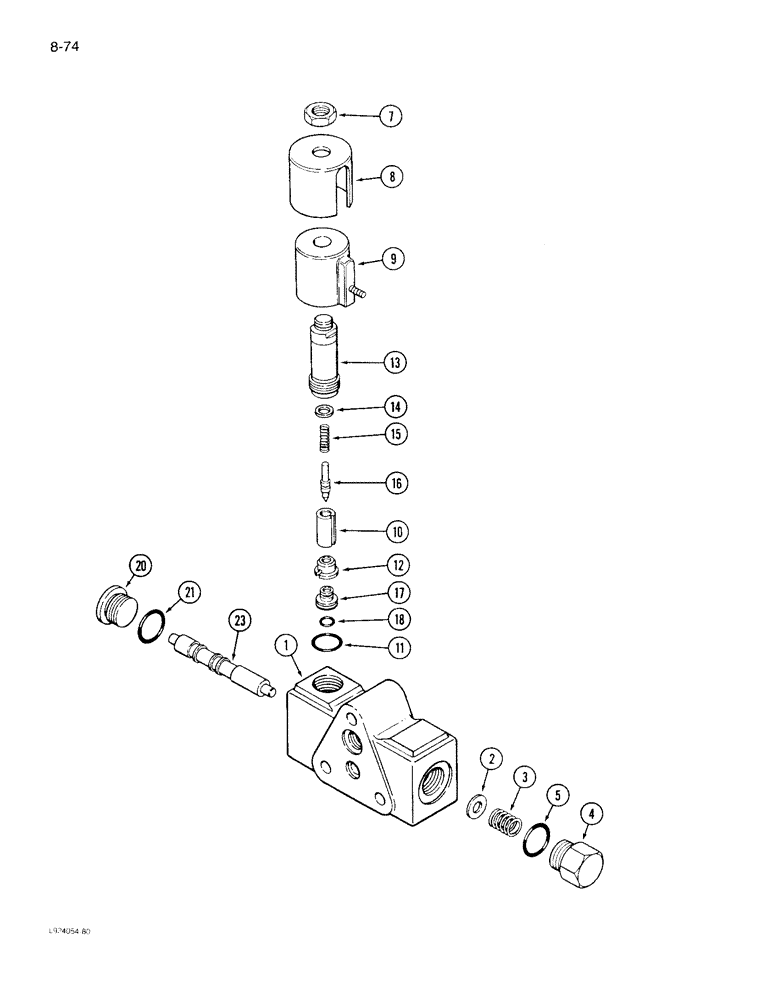

Запчасти Case IH 1640 (8-074) - FEEDER CLUTCH VALVE, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1542681C1

VALVE

ASSEMBLY - feeder clutch, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1301687C1

WASHER

- spring

1шт.

3

1301728C1

SPRING

- poppet

1шт.

4

1301686C1

CAP

PLUG - end

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

1шт.

8

1301632C1

CAP

COVER - coil

1шт.

9

1301730C1

VALVE

COIL - valve

1шт.

10

1301648C1

ARMATURE

- valve poppet

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301624C1

BUSHING

- pole

1шт.

13

1301627C1

STUD

SLEEVE ASSEMBLY - poppet

1шт.

14

1301642C1

WASHER

- spring backup

1шт.

15

1301729C1

SPRING

- poppet

1шт.

16

1301647C1

POPPET

- valve

1шт.

17

1301625C1

ORIFICE

- valve

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

19

1301649C1

PLUG

PLUG - orifice

1шт.

20

86625138

PLUG,7/18" - 14

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 x 1/4 inch

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.
