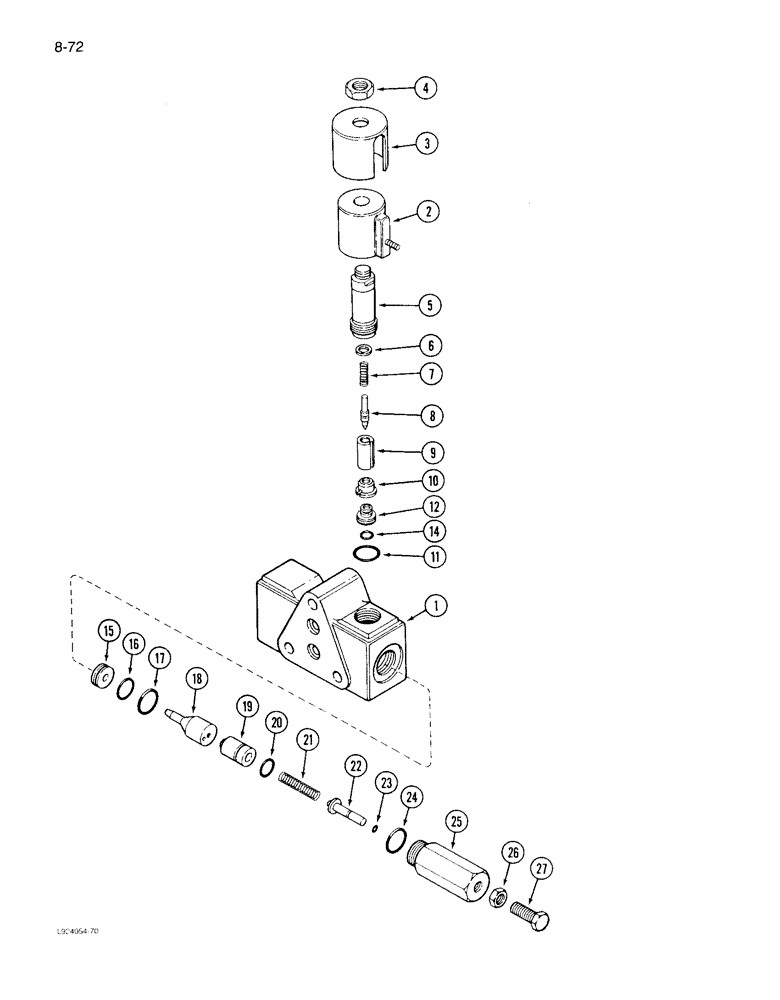

Запчасти Case IH 1640 (8-072) - HEADER LOWER VALVE, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1542680C1

VALVE

ASSEMBLY - header lower, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1301730C1

VALVE

COIL - valve

1шт.

3

1301632C1

CAP

COVER - coil

1шт.

4

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

1шт.

5

1301627C2

SLEEVE

ASSEMBLY - poppet

1шт.

6

1301642C1

WASHER

- spring backup

1шт.

7

1301640C1

SPRING

- poppet

1шт.

8

1301647C1

POPPET

- valve

1шт.

9

1301648C1

ARMATURE

- valve poppet

1шт.

10

1301624C1

BUSHING

- pole

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301639C1

PISTON

ORIFICE - valve

1шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

15

1301658C1

PISTON

ORIFICE - poppet

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

17

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

18

1301664C1

VALVE

POPPET - lower

1шт.

19

1301665C1

PISTON

POPPET - piston

1шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

21

1301660C1

SPRING

- poppet

1шт.

22

1301667C1

PIN

PLUNGER - adjusting

1шт.

23

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

1301666C1

PLUG

- adjusting

1шт.

26

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.
