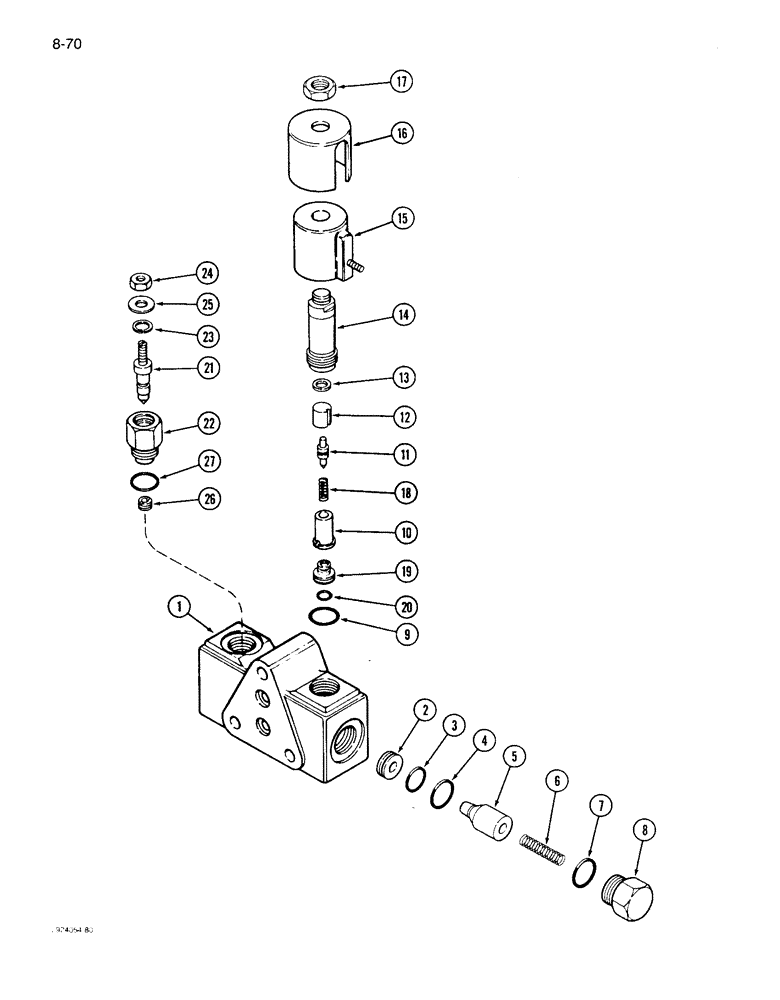

Запчасти Case IH 1640 (8-070) - HEADER LIFT VALVE, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1542679C1

VALVE

ASSEMBLY - header lift, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1301657C1

PISTON

ORIFICE - poppet

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

2шт.

5

1301659C1

PIN

POPPET - piston

1шт.

6

1301660C1

SPRING

- poppet

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1301661C1

PLUG

- hex

1шт.

9

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

10

1301646C1

BUSHING

- pole

1шт.

11

1301644C1

PIN

POPPET - valve, Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

12

1301643C1

VALVE

ARMATURE - valve

1шт.

13

1301642C1

WASHER

- spring backup

1шт.

14

1301641C2

TRANSMISSION SLEEVE

SLEEVE ASSEMBLY - poppet

1шт.

15

1301730C1

VALVE

COIL - valve

1шт.

16

1301632C1

CAP

COVER - coil

1шт.

17

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

1шт.

18

1301821C1

SPRING

- poppet

1шт.

19

1301639C1

PISTON

ORIFICE - valve

1шт.

20

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

21

107953A1

NEEDLE

OVERRIDE ASSEMBLY - manual ( replaced NSS )

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - valve

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

24

NSS

NOT SOLD SEPARAT

NUT

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING

1шт.
