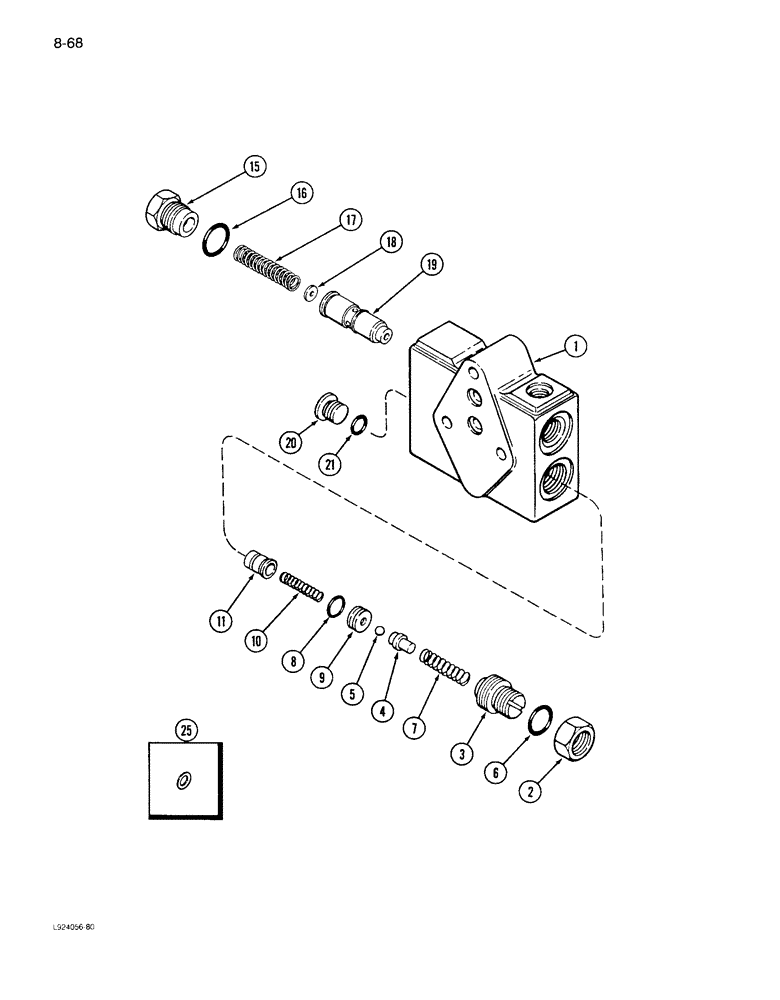

Запчасти Case IH 1640 (8-068) - FLOW DIVIDER VALVE, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1542678C1

VALVE

ASSEMBLY - flow divider, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1301674C1

NUT

- hex, 1 inch

1шт.

3

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - valve

1шт.

4

1301677C1

PIN

GUIDE - spring

1шт.

5

211-206

BALL,1/4" Dia

- 1/4 inch, Grade 25, chrome alloy steel

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

1301636C1

SPRING

- poppet

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

1301654C1

NUT

ORIFICE - valve

1шт.

10

1301679C1

SPRING

- orifice

1шт.

11

1301678C1

VALVE

POPPET - valve

1шт.

15

1272253C1

PLUG

CAP - end

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

107961A1

SPRING

- spool

1шт.

18

1301662C1

WASHER

DISC - dampening

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

20

9625178

PLUG,9/16" - 18 ORB

1шт.

530575R91

SHIM KIT

- relief valve, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.005 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.007 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.020 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.042 inch

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
