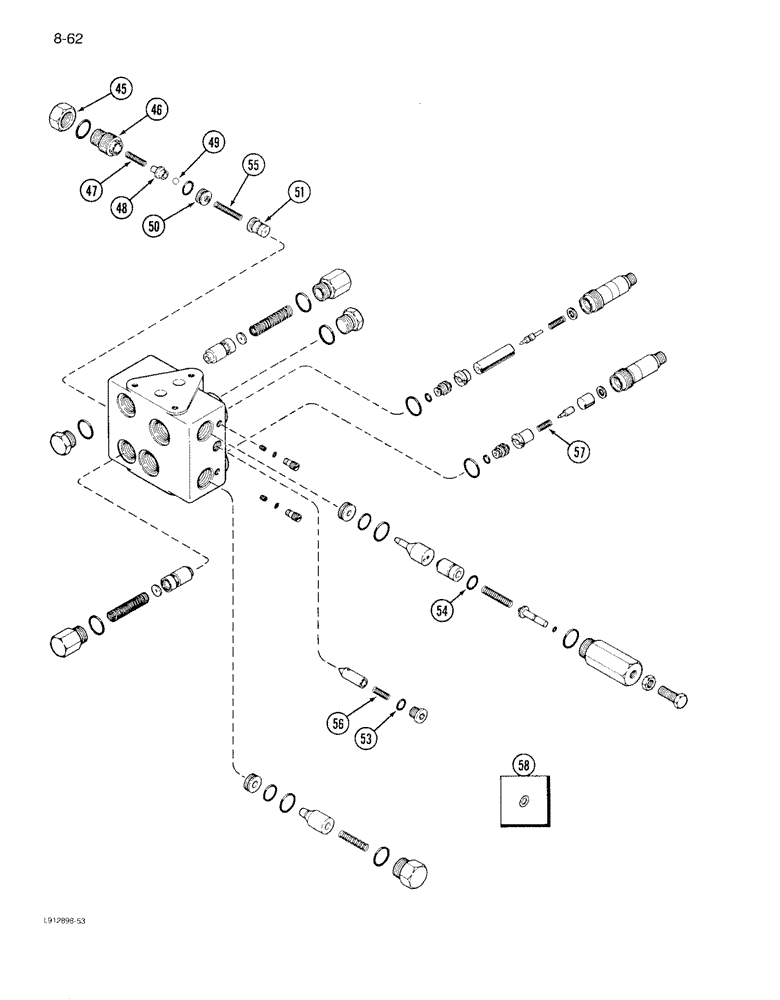

Запчасти Case IH 1640 (8-062) - HEADER VALVE, PRIOR TO P.I.N. JJC0097190 (CONTD) (07) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - header, continued, Includes: Ref. 2 - 44 on Figure 8-062 and 45 - 57

1шт.

45

1301674C1

NUT

- hex, 1 inch

1шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - retaining

1шт.

47

1301636C1

SPRING

- plug

1шт.

48

1301677C1

PIN

GUIDE - spring

1шт.

49

211-206

BALL,1/4" Dia

- metal, 1/4 inch, Grade 25

1шт.

50

1301654C1

NUT

ORIFICE - valve

1шт.

51

1301678C1

VALVE

POPPET - valve

1шт.

53

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

Part of O-Ring and seal kit P/N 1282279C2

1шт.

54

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 inch

1шт.

Part of O-Ring and seal kit P/N 1282279C2

1шт.

55

1301679C1

SPRING

- orifice

1шт.

56

1301729C1

SPRING

- plug

1шт.

57

1301821C1

SPRING

- bushing

1шт.

530575R91

SHIM KIT

PACKAGE - relief valve shim, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.042 inch

1шт.

1282279C2

SEAL KIT

KIT - seal, Includes: Ref. 53 and 54 on pages 8-61 and 8-63

1шт.
