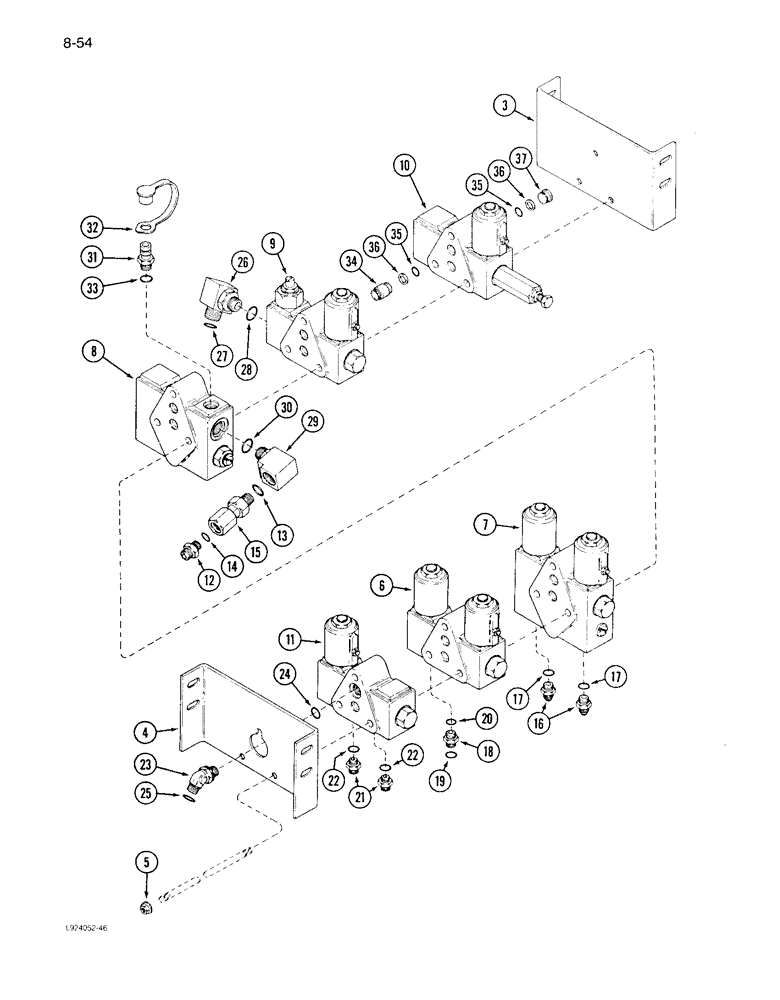

Запчасти Case IH 1640 (8-054) - CONTROL VALVE AND MOUNTING, W/O FORE AND AFT ATTACHMENT, SERIAL NO. JJC0097190 & AFTER (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - control (Order Components), Includes: Ref. 3 - 37

1шт.

1986775C1

VALVE ASSEMBLY - control (Order Components), Includes: Ref. 3 - 11 & 13, 14

1шт.

3

1541613C1

SUPPORT

- valve stack, front

1шт.

4

1989370C2

SUPPORT

- valve stack, end

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

106440A1

STEM

ROD, O/A LENGTH IS 14", 1/4"- 20 UNC thread at both ends, see print INF191 SVP

1шт.

P/N Rod is the shaded part directly to the right of Ref. 5 in the illustration.

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - reel lift (See Figure 8-64)

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - unloader swing (See Figure 8-66)

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - flow divider (See Figure 8-068)

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - header lift (See Figure 8-070)

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - header lower (See Figure 8-072)

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - feeder clutch (See Figure 8-074)

1шт.

12

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

1272346C1

FILTER

ASSEMBLY - valve pressure line

1шт.

16

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

ADAPTOR - straight, 11/16-16 face seal x 7/16-20 inch O-ring, Includes: Ref. 19, 20

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 13/16-16 face x 9/16-18 inch adj O-ring, Includes: Ref. 24, 25

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 face seal x 7/8-14 inch O-ring, Includes: Ref. 27, 28

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

1989475C3

TEE

- 5/8 O-ring boss adj, x 3/4 x 3/8 inch, Include: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

S243647

COUPLING

COUPLER - diagnostic. Includes: Ref. 32, 33

1шт.

32

H434163

DUST CAP

CAP - coupler, dust

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

- through, Includes: Ref. 35, 36

9шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup

1шт.

37

1301634C2

PLUG

- cap

4шт.
