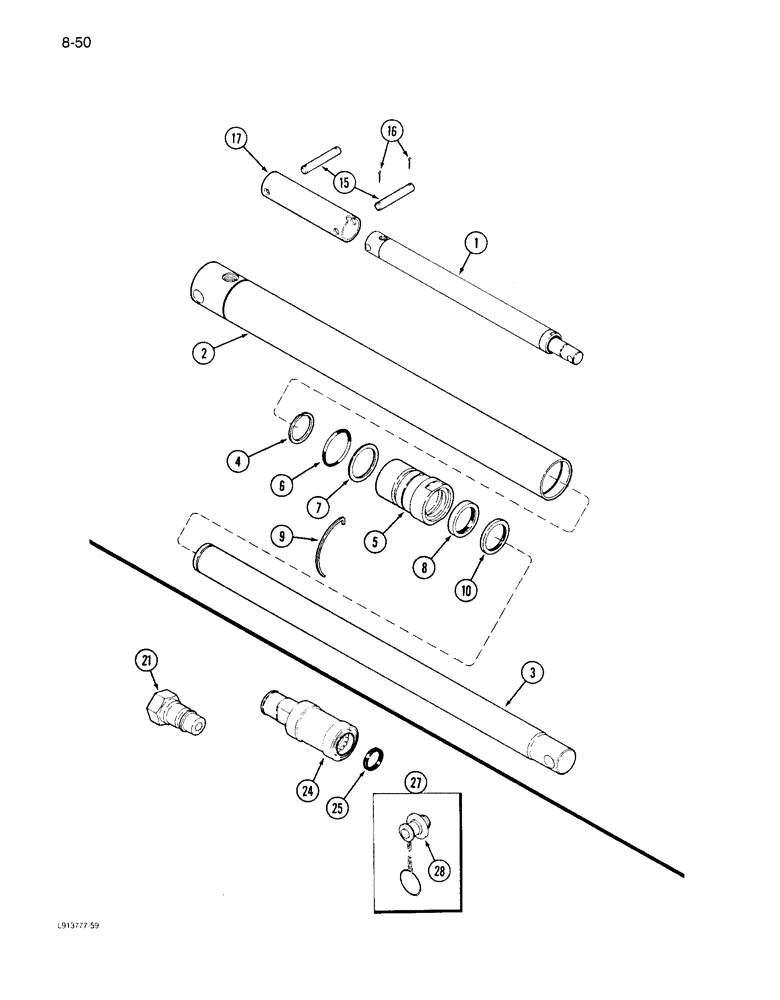

Запчасти Case IH 1640 (8-050) - HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - hydraulic, Includes: Ref. 2 - 10

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1640 CASE IH AXIAL-FLOW COMBINE (S/N JJC0034705 & AFTER) (NORTH AMERICA), P.I.N. JJC0034705 AND AFTER, Assembly, hydraulic (1/86-12/92)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

127780C2

ROD

- piston

1шт.

4

NSS

NOT SOLD SEPARAT

RING - stop, piston rod

1шт.

Part of cylinder repair kit P/N 224718C92

1шт.

5

142568C2

HEAD

- front

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16 inch, front head

1шт.

Part of cylinder repair kit P/N 224718C92

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

Part of cylinder repair kit P/N 224718C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of cylinder repair kit P/N 224718C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of cylinder repair kit P/N 224718C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of cylinder repair kit P/N 224718C92

1шт.

224718C92

SEAL KIT

KIT - repair, cylinder, Includes: Ref. 4, 6, 7, 8, 9 and 10

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

- header lift cylinder, 1 x 5-5/32 inch

1шт.

15

195822C1

PIN,25.4mm OD x 228.6mm L

- header lift cylinder (Used with third cylinder)

1шт.

16

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

17

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- lift cylinder extension (For 54 inch feeder)

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE - lift cylinder extension (For 47-1/2 inch feeder)

1шт.

21

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - Hydraulic, self sealing male, 7/8-14 thread

1шт.

24

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - Hydraulic, self sealing female, 7/8-14 thread, Includes: Ref. 25

1шт.

25

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing, hydraulic coupling

1шт.

27

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, Includes: Ref. 28, hydraulic

1шт.

28

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- coupling plug, hydraulic

1шт.
