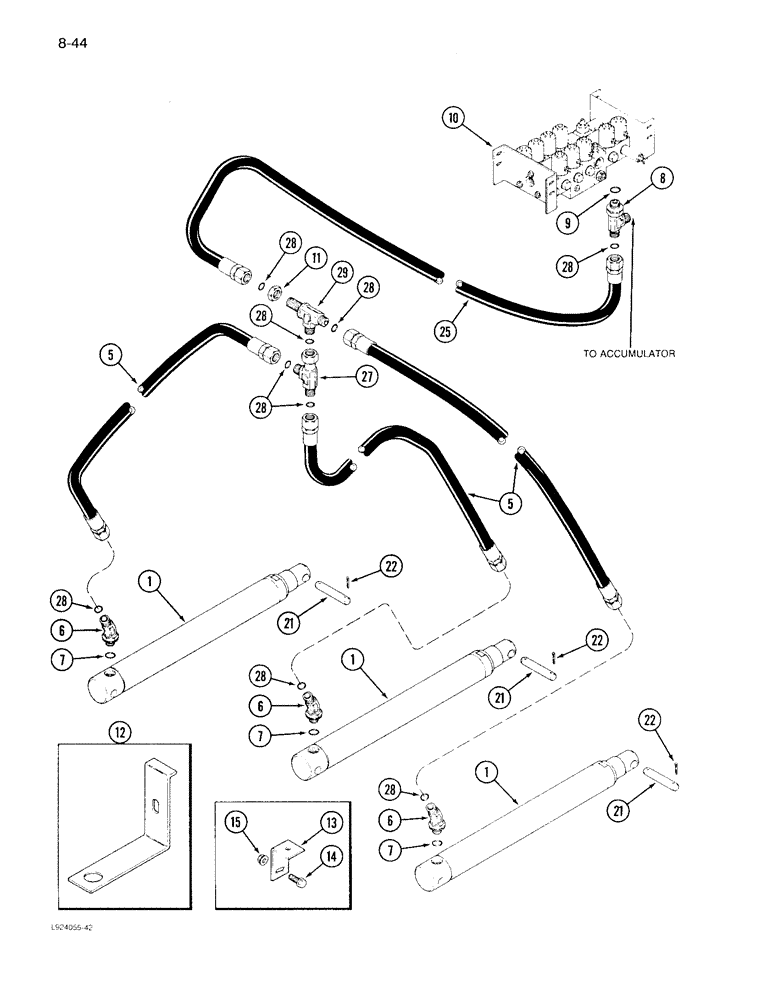

Запчасти Case IH 1640 (8-044) - HEADER LIFT CYLINDER SYSTEM, W/THIRD LIFT CYLINDER ATTACHMENT, P.I.N. JJC0097190 & AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Figure 8-50)

3шт.

5

1989667C1

HOSE

ASSEMBLY - header lift cylinder

3шт.

6

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

45°, 13/16"-16 x 3/4"-16. Adj, ORFS

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

3шт.

8

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 13/16-16 face branch x face x 3/4-16 inch adj O-ring

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-54 or 58)

1шт.

11

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

12

1989653C1

SUPPORT

- header cylinder fitting

1шт.

13

176394C1

ANGLE

- header lift tubes

1шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/16 NC x 3/4 inch

1шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

1шт.

21

573762R1

PIN,25.4mm OD x 130.97mm L

- lift cylinder retaining, 5-5/32 inch

2шт.

21

195822C1

PIN,25.4mm OD x 228.6mm L

- header lift cylinder, 1 inch diameter x 9 inch

2шт.

22

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

25

1989666C1

HOSE

ASSEMBLY - header cylinder supply

1шт.

27

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

- 13/16-16 inch face branch x face x swivel face

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

9шт.

29

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

- 13/16-16 inch face seal branch x face seal x face seal

1шт.
