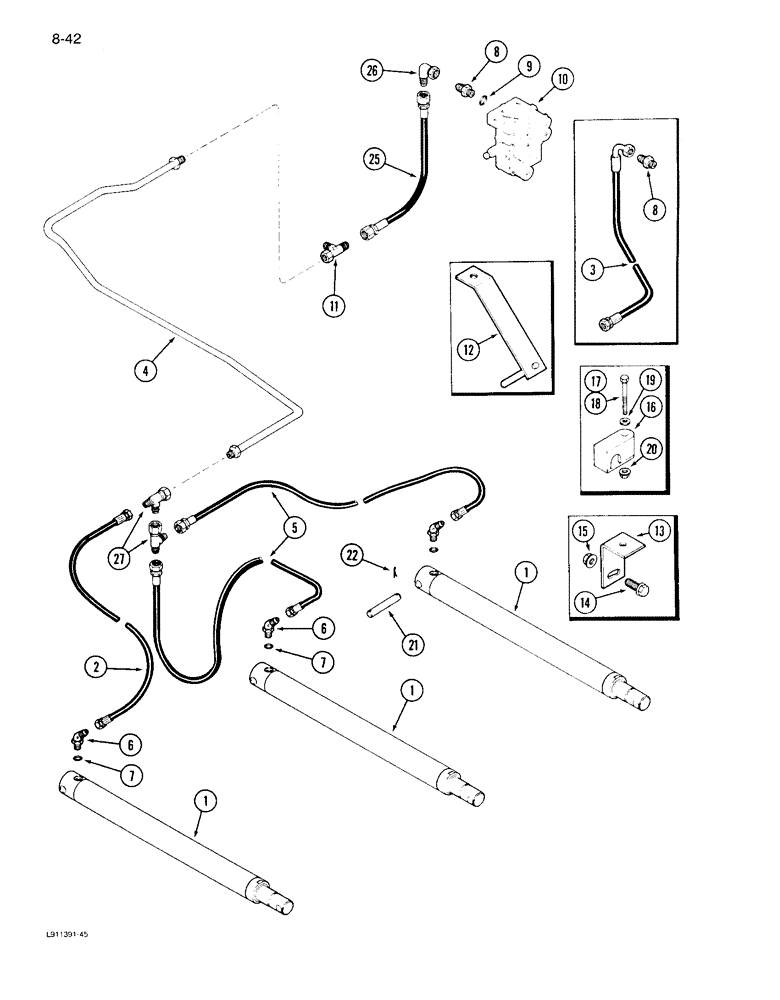

Запчасти Case IH 1640 (8-042) - HEADER LIFT CYLINDER SYSTEM, W/THIRD LIFT CYLINDER ATTACHMENT, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Figure 8-50)

3шт.

2

1345116C1

HOSE

ASSEMBLY - header lift cylinder, 45 inch

1шт.

3

1310862C1

HOSE

- header lift, 29 inch

1шт.

Prior to P.I.N. JJC0035300

1шт.

4

1321493C2

HYD TUBE

TUBE - header lift cylinder

1шт.

Prior to P.I.N. JJC0035300

1шт.

4

1979996C1

TUBE

- header lift cylinder

1шт.

P.I.N. JJC0035300 through JJC0097189

1шт.

5

1345115C1

HOSE

- header lift cylinder, 27 inch

2шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch

2шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 1/2 inch tube 3/4-16 thread

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

3шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - short, 5/8 inch tube 7/8-14 thread

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-052 or 8-056)

1шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

12

173143C2

SUPPORT

- header lift hose

1шт.

13

176394C1

ANGLE

- header lift tubes

1шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/16 NC x 3/4 inch

1шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

1шт.

16

183822C1

CLAMP

- header lift tube

3шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

18

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

19

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

3шт.

20

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

3шт.

21

573762R1

PIN,25.4mm OD x 130.97mm L

- lift cylinder retaining, 5-5/32 inch

2шт.

21

195822C1

PIN,25.4mm OD x 228.6mm L

- header lift cylinder, 1 inch diameter x 9 inch

2шт.

22

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

25

90875C1

HYDRAULIC HOSE

HOSE - hydraulic, 29 inch

1шт.

P.I.N. JJC0035300 through JJC0097189

1шт.

26

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

27

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

2шт.
