Запчасти Case IH 1640 (8-040) - HEADER LIFT PUMP, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

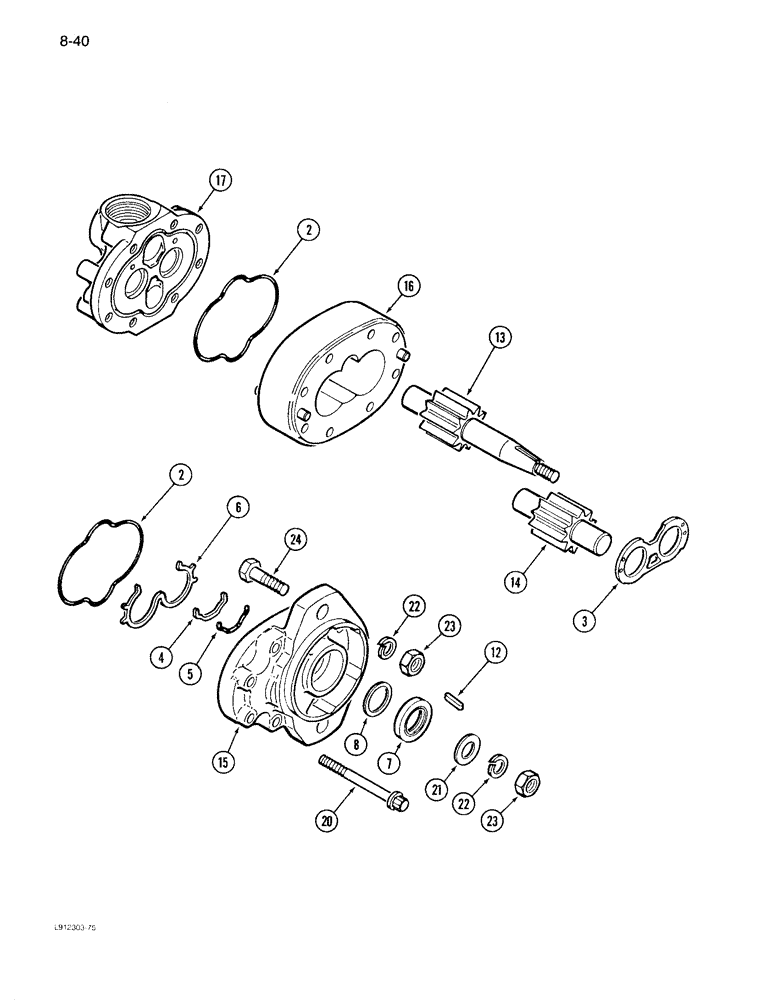

Схема запчастей Case IH 1640 - (8-040) - HEADER LIFT PUMP, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS
23
3
24
17
5
16
21
2
12
2
8
22
14
23
13
20
4
6
22
7
15

Артикул

Название

Примечание

Количество

1272258C92

PUMP, HYDRAULIC,30.6 CC

PUMP ASSEMBLY - header lift, 15 GPM (New), Includes: Ref. 2 - 20

1шт.

Part number stamped on part.

1шт.

1272258C92R

REMAN-HYD PUMP

PUMP ASSEMBLY - header lift, 15 GPM, Includes: Ref. 2 - 20

1шт.

1272258C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1949284C1

REMAN-HYD PUMP

PUMP ASSEMBLY - header lift, 12.5 GPM (Remanufactured)

1шт.

87607373R

REMAN-HYD PUMP

PUMP ASSEMBLY - header lift, 12.5 GPM (Remanufactured)

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1272257C92

PUMP, HYDRAULIC

PUMP ASSEMBLY - header lift, 12.5 GPM (New), Includes: Ref. 2 - 20

1шт.

Part number stamped on part.

1шт.

87607373R

REMAN-HYD PUMP

PUMP ASSEMBLY - header lift, 12.5 GPM (Remanufactured)

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1272638C2

SEAL KIT

KIT - seal, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - back-up

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

12

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pump retaining

8шт.

21

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- 17/32 x 1 x 3/64 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

425-106

NUT,3/8"-16, Cl 5

3шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

Выбрано товаров: 30
