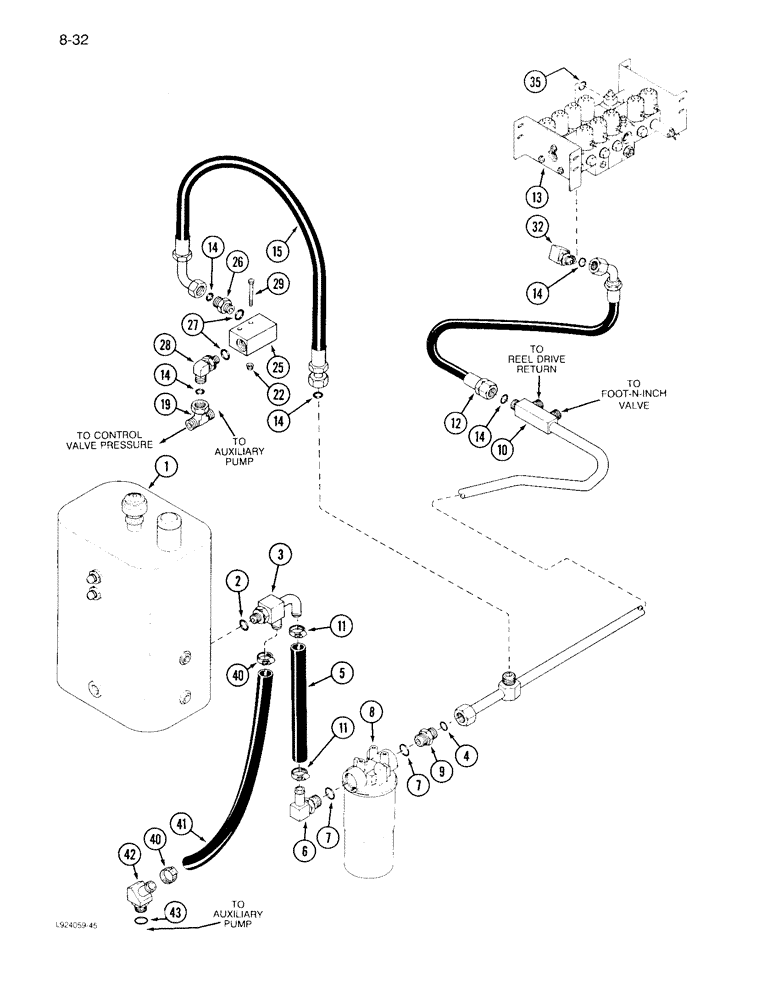

Запчасти Case IH 1640 (8-032) - HEADER LIFT RETURN SYSTEM, P.I.N. JJC0097190 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-004)

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

3

1541642C1

TEE

- special, beaded tube

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

1541694C1

HOSE

- return, Serial Range: reservoir-filter

1шт.

6

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW - 90 deg, 1 stem end x 1-5/8-12 inch adj O-ring boss

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

8

REF

INSTRUCTION

FILTER ASSEMBLY - charge suction (See Figure 8-14)

1шт.

9

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

CONNECTOR - straight, 1-14 face seal x 1-5/16-12 inch O-ring

1шт.

10

1989283C1

HYD TUBE

TUBE ASSEMBLY - valve return

1шт.

11

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.00/1.875 HD Worm, W/liner

2шт.

12

1989530C1

HOSE

ASSEMBLY - valve stack drain, 33 inch

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-54 or 58)

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

15

1980050C2

HOSE,15.88mm ID x 737mm L

ASSEMBLY - relief valve drain, 29 inch

1шт.

19

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

- swivel, 1-3/16-12 inch thread

1шт.

25

1542686C1

VALVE

ASSEMBLY - relief, 2,500 PSI

1шт.

26

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

CONNECTOR - straight jump, 1/2 to 3/4 inch thread

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

28

201-358

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 x 1-3/16-12 inch thread

1шт.

29

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

30

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

32

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 face seal x 7/8-14 inch O-ring

1шт.

34

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.00/1.875 HD Worm, W/liner

2шт.

41

1541692C1

FLEXIBLE HOSE

HOSE - charge pump suction

1шт.

42

217-316

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 45 degree, 1 stem end x 1-5/16-12 inch adj O-ring

1шт.

43

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.
