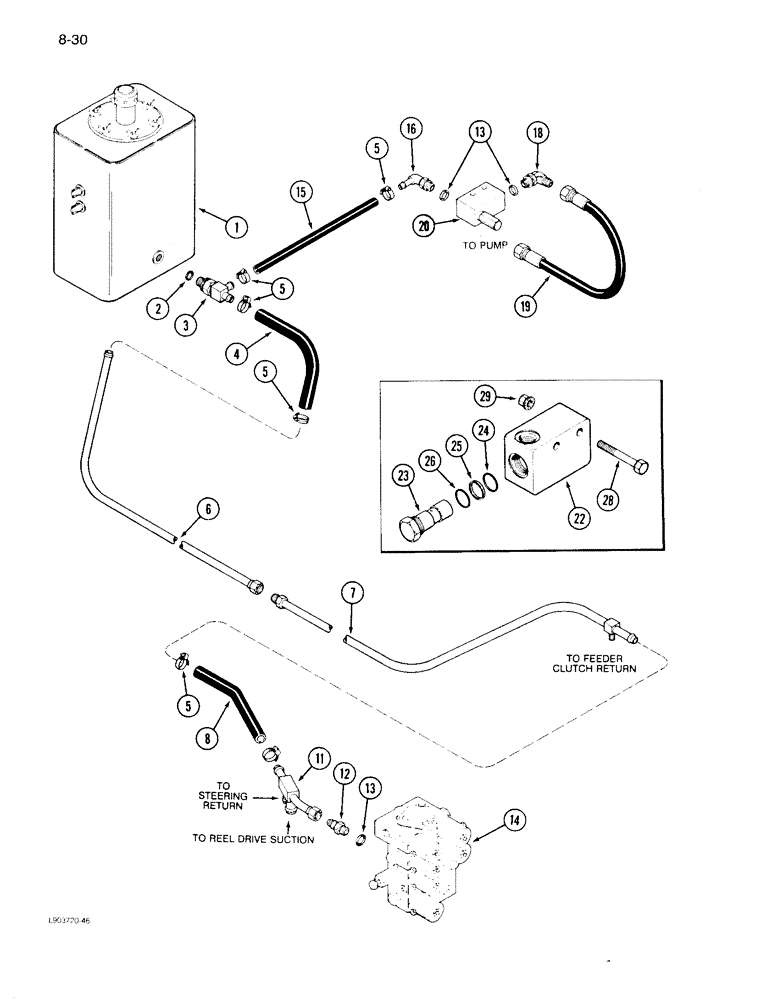

Запчасти Case IH 1640 (8-030) - HEADER LIFT RETURN SYSTEM, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-002)

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

172059C1

TEE

- adjustable

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 3/4 ID x 18 inch

1шт.

Order 180720C1 and cut to length.

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

6шт.

6

196743C2

HYD TUBE

TUBE ASSEMBLY - header lift return, rear

1шт.

7

196744C1

HYD TUBE

TUBE ASSEMBLY - header lift return, front

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - 3/4 ID x 7 inch

1шт.

Order 180720C1 and cut to length.

1шт.

11

1310757C1

TUBE

- header lift and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short, 1-1/16-12 thread x 5/8 inch

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-052 or 8-056)

1шт.

15

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

16

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

- 90 degree adjustable

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch

1шт.

19

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Pressure, Relief Valve 0.50" ID x 20.00", SAE 100R1 Class 7

1шт.

20

1971746C1

VALVE

ASSEMBLY - relief (Alternate with 549528R93), Includes: Ref. 22 - 26

1шт.

20

549528R93

VALVE

ASSEMBLY - relief (Alternate with 1971746C1), Includes: Ref. 22 - 26

1шт.

22

403187R1

BLOCK

BODY - valve

1шт.

23

396729R93

VALVE

- relief

1шт.

24

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

25

378985R2

BACK-UP RING

- backup

1шт.

26

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 7/8 x 1-1/16 inch

1шт.

28

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.
