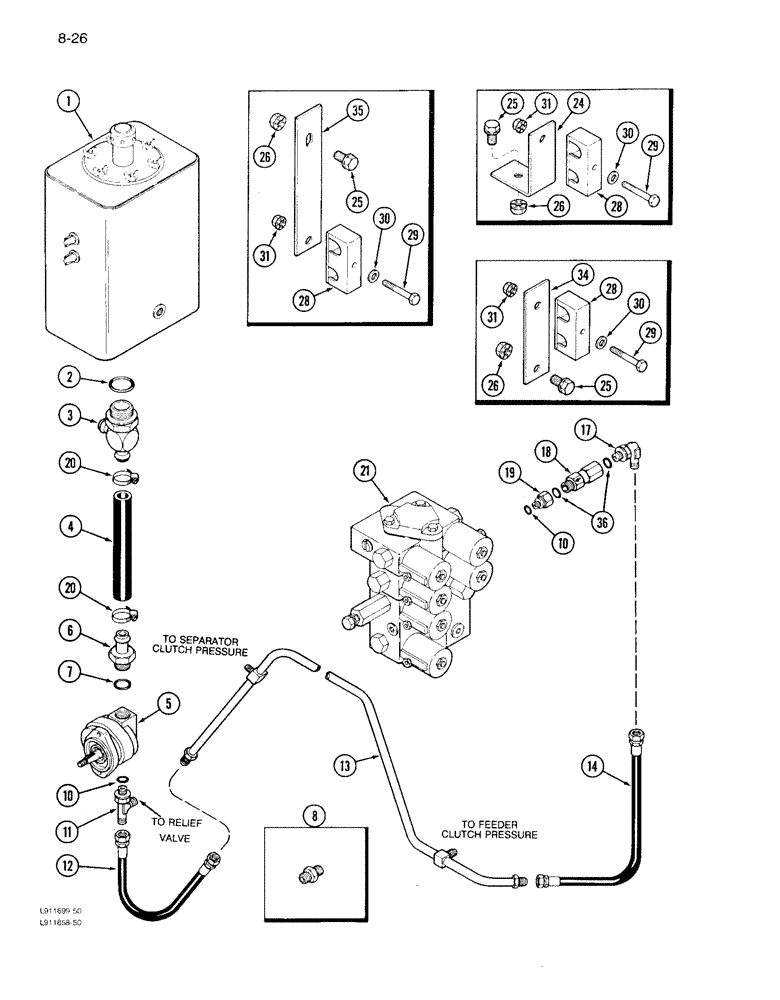

Запчасти Case IH 1640 (8-026) - HEADER LIFT SUPPLY SYSTEM, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-002)

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

6шт.

3

1301506C1

TEE

- 1-1/2 tube, 1-7/8-12 thread x 1 inch OD beaded tube

1шт.

4

1310703C1

HOSE

- headcr lift suction, 13 inch

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - auxiliary hydraulic lift (See Figure 8-40)

1шт.

6

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Stem 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

1шт.

8

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

straight 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

11

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

ASSEMBLY - adjustable, 7/8-14 thread

1шт.

12

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

- header lift pressure, 18-1/4 inch long

1шт.

12

390649R92

HYDRAULIC HOSE

HOSE ASSEMBLY - header lift pressure, 19 inch long

1шт.

13

196747C1

HYD TUBE

TUBE ASSEMBLY - header lift pressure

1шт.

14

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Header Lift Presssure 12.70 mm ID x 508.00 mm, SAE 100R1

1шт.

17

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 7/8-14 thread

1шт.

18

1272346C1

FILTER

ASSEMBLY - valve pressure line

1шт.

19

1968919C1

FITTING

REDUCER - 7/8-14 x 1-1/16-12 inch thread

1шт.

20

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-052 or 8-056)

1шт.

24

178950C1

ANGLE

SUPPORT - header lift tube

2шт.

25

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

28

121714C1

CLAMP

- header lift tubes

3шт.

29

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

30

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, flange lock, 1/4 inch NC

3шт.

34

187509C1

BAR

- header lift tubes, 5 inch

1шт.

35

187510C2

BAR

- header lift tubes, 7-1/2 inch

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

2шт.
