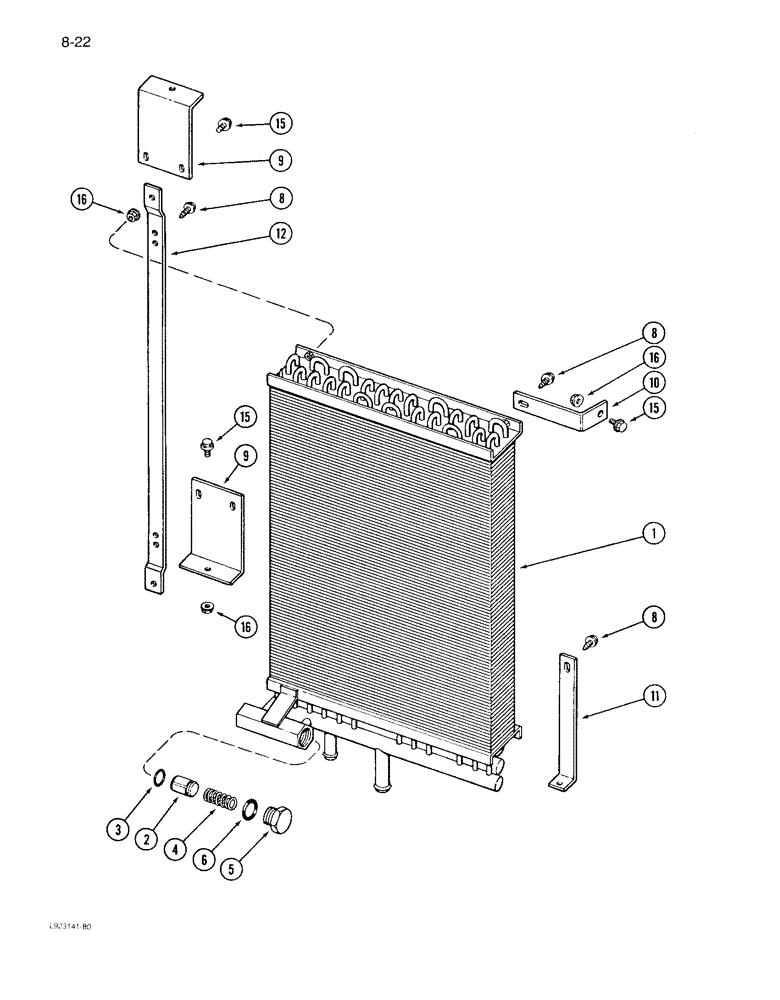

Запчасти Case IH 1640 (8-022) - OIL COOLER (07) - HYDRAULICS

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, hydraulic, Include: Ref. 2 - 6

1шт.

2

93198C1

VALVE

VALVE - bypass

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

O-RING, -020, 70 Duro, .864" ID x .070" Thk

1шт.

4

A189029

SPRING

SPRING - bypass valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

PLUG, , Assy, Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/64 ID x 7/64 inch

1шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

9

1329770C1

SUPPORT

SUPPORT - oil cooler, left

2шт.

10

1329771C1

SUPPORT

SUPPORT - oil cooler, top right

1шт.

11

1329981C1

SUPPORT

SUPPORT - oil cooler, bottom right

1шт.

12

1329983C1

SUPPORT

SUPPORT - strap, oil cooler left

1шт.

15

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

BOLT - hex flange lock, 5/16 NC x 3/4 inch

6шт.

16

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

6шт.
