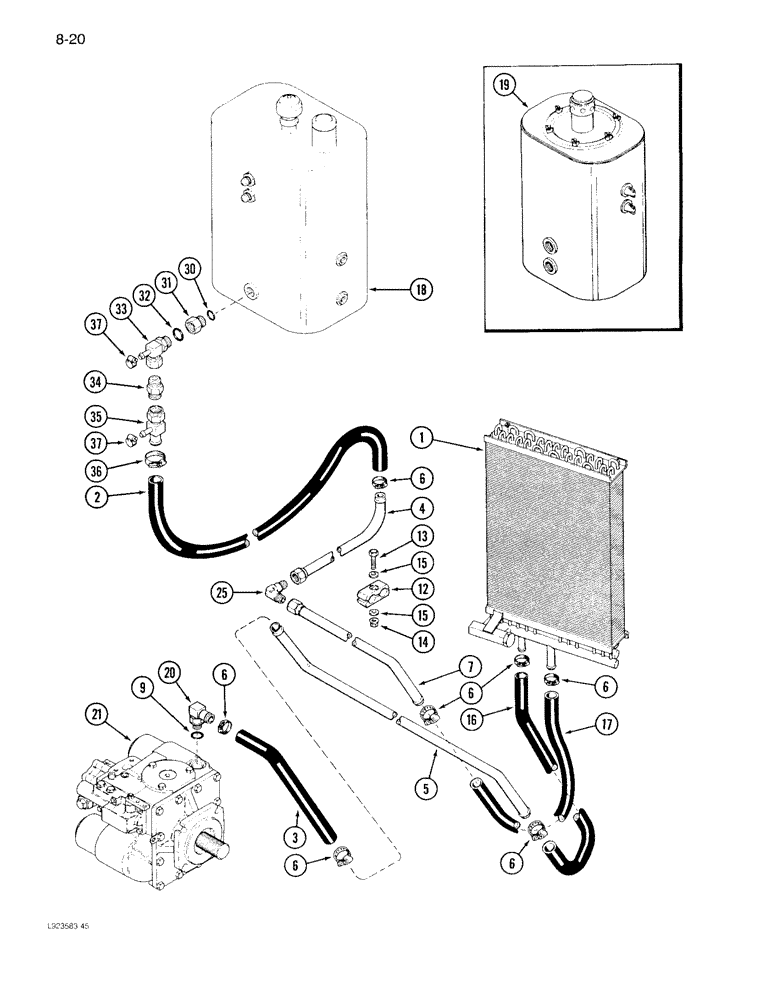

Запчасти Case IH 1640 (8-020) - OIL COOLER SYSTEM, CORN AND GRAIN COMBINE, W/POWER GUIDE AXLE, SERIAL NO. JJC0097190 & AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil (See Figure 8-022)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - reservoir to cooler, 394 mm

1шт.

Order B90928 and cut to length.

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - pump to cooler, 610 mm

1шт.

Order B90927 and cut to length.

1шт.

4

1979731C1

TUBE

ASSEMBLY -, Serial Range: reservoir-cooler

1шт.

5

1330590C1

HYD TUBE

TUBE -, Serial Range: pump-cooler

1шт.

6

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

8шт.

6

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose, No.16 Type F

8шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

1шт.

12

1347072C1

CLAMP

- tube retaining, 1 x 3/4 inch

2шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

16

1324939C2

HOSE

- oil cooler supply

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - oil, 1040 mm

1шт.

Order B90928 and cut to length.

1шт.

18

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-004)

1шт.

19

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-002)

1шт.

20

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 deg, 3/4 stem end x 1-1/16-12 inch adj O-ring

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Page 6-25)

1шт.

25

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch flare

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

1979767C1

ADAPTER

REDUCER

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

33

1979760C1

TEE

- return

1шт.

34

1343558C1

VALVE

ASSEMBLY - bypass, power guide axle

1шт.

35

1979655C1

TEE

- wheel motor flush

1шт.

36

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose retaining

1шт.

37

244713

SPARE PART

CLAMP - hose

2шт.
