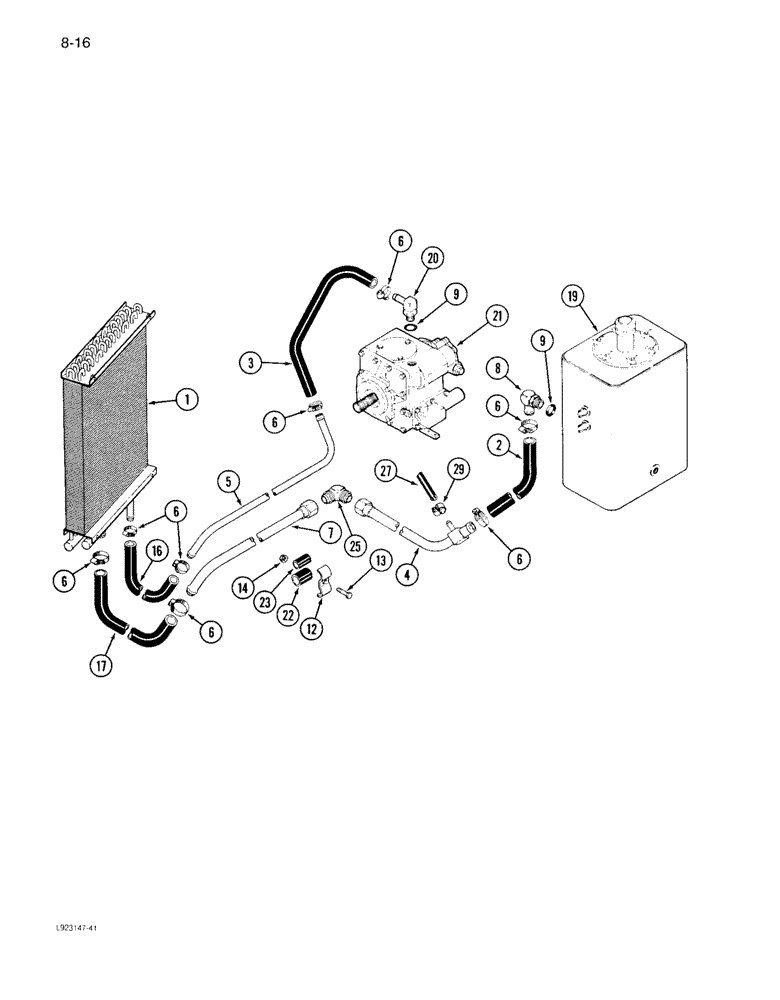

Запчасти Case IH 1640 (8-016) - OIL COOLER SYSTEM, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil (See Figure 8-022)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - reservoir to cooler, 394 mm

1шт.

Order B90928 and cut to length.

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - reservoir to pump, 685 mm

1шт.

Order B90927 and cut to length.

1шт.

4

1970443C1

HYD TUBE,25.4 mm OD

TUBE ASSEMBLY - reservoir to cooler

1шт.

5

1330590C1

HYD TUBE

TUBE ASSEMBLY - oil cooler to hydrostatic pump

1шт.

6

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose, No.16 Type F

8шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

8

178995C1

ELBOW

ASSEMBLY - 90 degree, system return

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

2шт.

12

157678C1

CLAMP

- hydraulic tube

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - cooler to pump, 940 mm

1шт.

Order B90927 and cut to length.

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir, 1245 mm

1шт.

Order B90928 and cut to length.

1шт.

19

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-002)

1шт.

20

387006R91

ELBOW

- 90 degree, 1-1/16 thread x 3/4 inch barb end

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-20)

1шт.

22

187935C1

STRIP

- tube clamp, 1 inch ID

2шт.

23

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- tube clamp, 3/4 inch ID

2шт.

25

9402947

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- 90 degree, 1-5/16-12 inch thread

1шт.

27

1957283C3

HOSE

- case drain

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.
