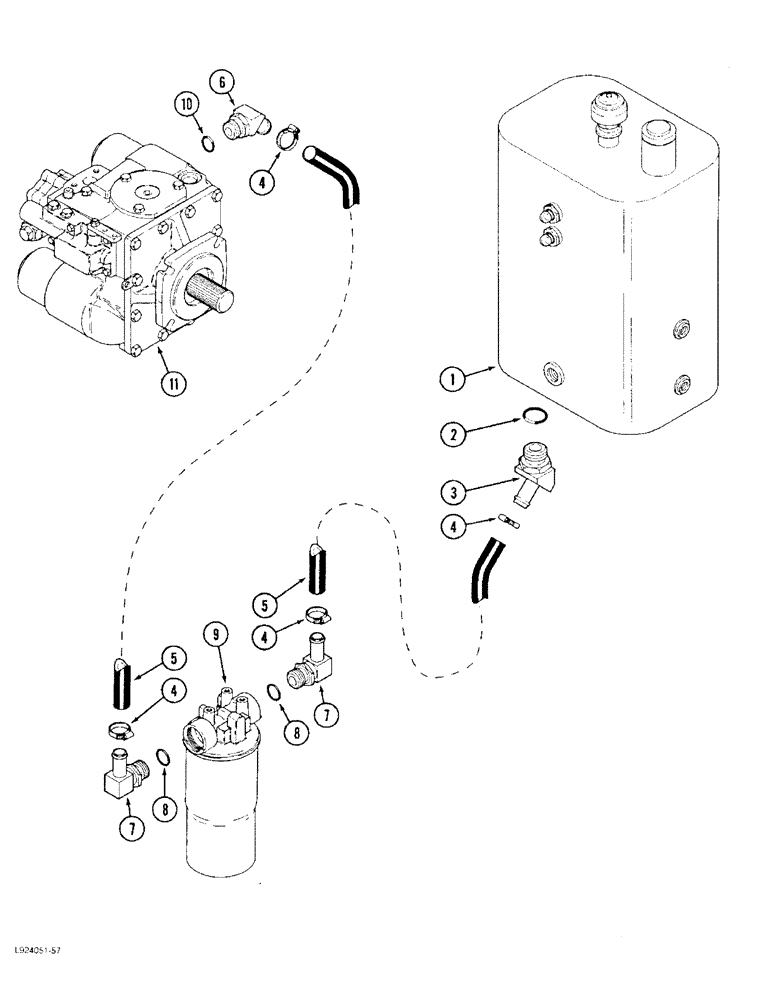

Запчасти Case IH 1640 (8-010) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP, P.I.N. JJC0097190 & AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic, (See Figure 8-004)

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

3

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR - hose, 45º, 1-1/4 x 1 inch

1шт.

4

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.00/1.875 HD Worm, W/liner

4шт.

5

1541692C1

FLEXIBLE HOSE

HOSE - charge pump suction, 1 inch

2шт.

6

217-316

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

CONNECTOR - hose, 45 deg, 1 x 1 inch

1шт.

7

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

CONNECTOR - hose, 90 deg, 1 x 1 inch

2шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

2шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - charge pump suction (See Figure 8-12 or 8-14)

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

11

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-24 or 6-32)

1шт.
