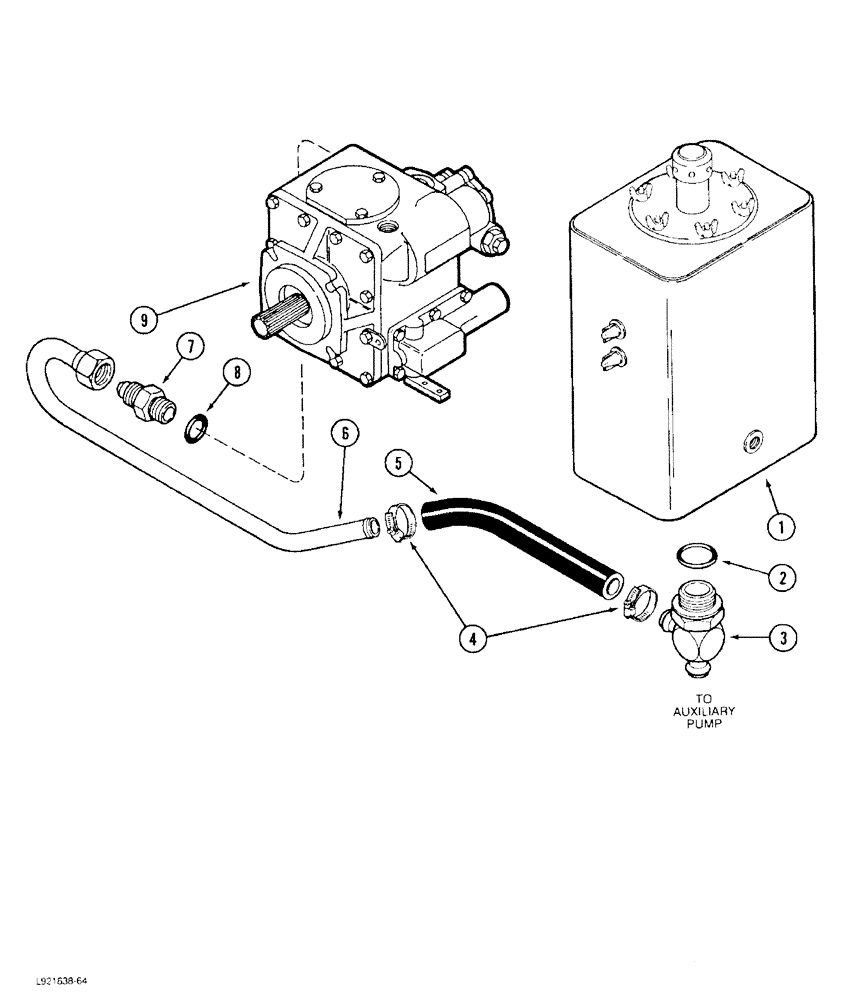

Запчасти Case IH 1640 (8-008) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Figure 8-002)

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, 1/2" OD tube

1шт.

3

1301506C1

TEE

ASSEMBLY - adjustable, hydraulic

1шт.

4

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

2шт.

5

NSS

NOT SOLD SEPARAT

HOSE - oil, 430 mm (Order 637728C1 and, Serial Range: cut-length)

1шт.

6

1970458C1

HYD TUBE

TUBE ASSEMBLY - charge suction

1шт.

7

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short, 1-5/16-12 inch thread

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-20 or 6-28)

1шт.
