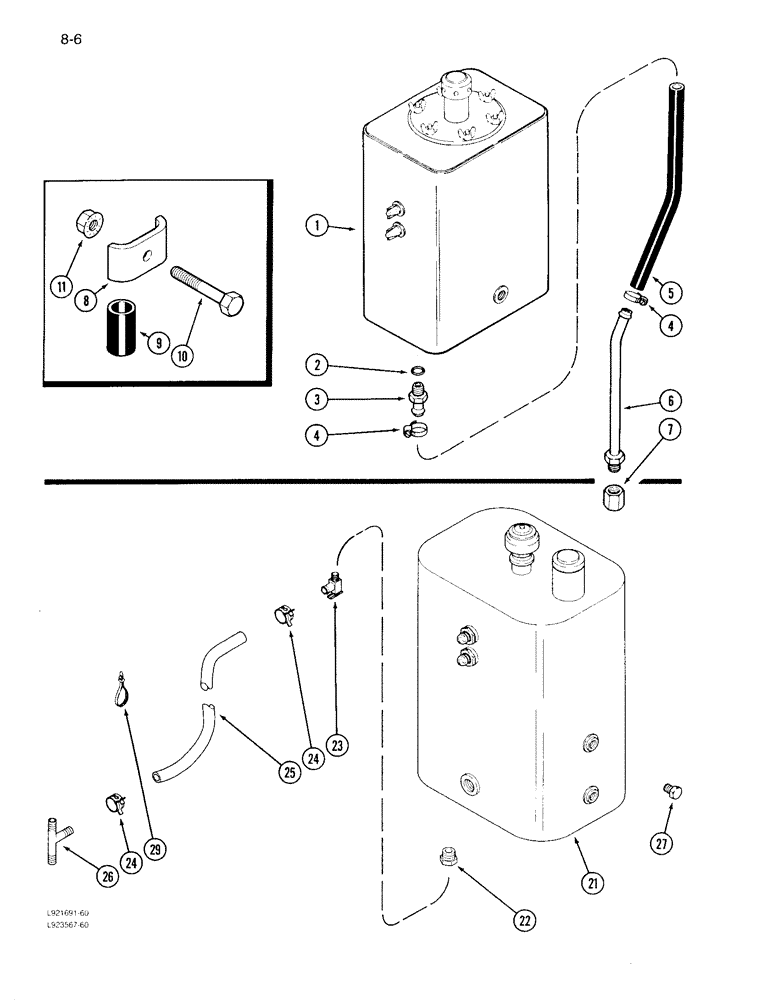

Запчасти Case IH 1640 (8-006) - HYDRAULIC RESERVOIR DRAIN, PRIOR TO P.I.N. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Figure 8-002), Serial Range: -JJC0097190

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Serial Range: -JJC0097190

1шт.

3

196816C1

FITTING

CONNECTOR - drain, Serial Range: -JJC0097190

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F, Serial Range: -JJC0097190

2шт.

5

NSS

NOT SOLD SEPARAT

HOSE - oil, 7 inch (Order S118576 and cut to length), Serial Range: -JJC0097190

1шт.

6

187822C1

HYD TUBE,5/8" OD, 14, 1.2" Length

TUBE - drain, Serial Range: -JJC0097190

1шт.

7

218-756

CAP,37 Degree, 7/8"-14

Drain tube 37º, 7/8"-14, Serial Range: -JJC0097190

1шт.

8

165601C1

CLAMP

- reservoir drain tube, Serial Range: -JJC0097190

1шт.

9

163492C1

RUBBER INSULATOR

STRIP - tube clamp, Serial Range: -JJC0097190

1шт.

10

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch, Serial Range: -JJC0097190

1шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, Serial Range: -JJC0097190

1шт.

21

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Figure 8-004), P.I.N. JJC0097190 and after, Start Serial: JJC0097190

1шт.

22

175778H1

ADAPTER

- 1/2 to 3/8 inch pipe, P.I.N. JJC0097190 and after, Start Serial: JJC0097190

1шт.

23

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - reservoir drain, P.I.N.N JJC0097190 and after, Start Serial: JJC0097190

1шт.

24

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, P.I.N. JJC0097190 and after, Start Serial: JJC0097190

2шт.

25

NSS

NOT SOLD SEPARAT

HOSE - oil, 1350 mm (Order 1977295C1 and cut to length), P.I.N. JJC0097190 and after, Start Serial: JJC0097190

1шт.

26

1977169C1

TEE

- oil drain, P.I.N. JJC0097190 and after, Start Serial: JJC0097190

1шт.

27

221-664

PLUG,Hex Hd, 1/2"-14

- hex, 1/2 inch PT, P.I.N. JJC0097190 and after, Start Serial: JJC0097190

2шт.

29

702093C1

CABLE TIE

STRAP - nylon retaining, P.I.N. JJC0097190 and after, Start Serial: JJC0097190

1шт.
