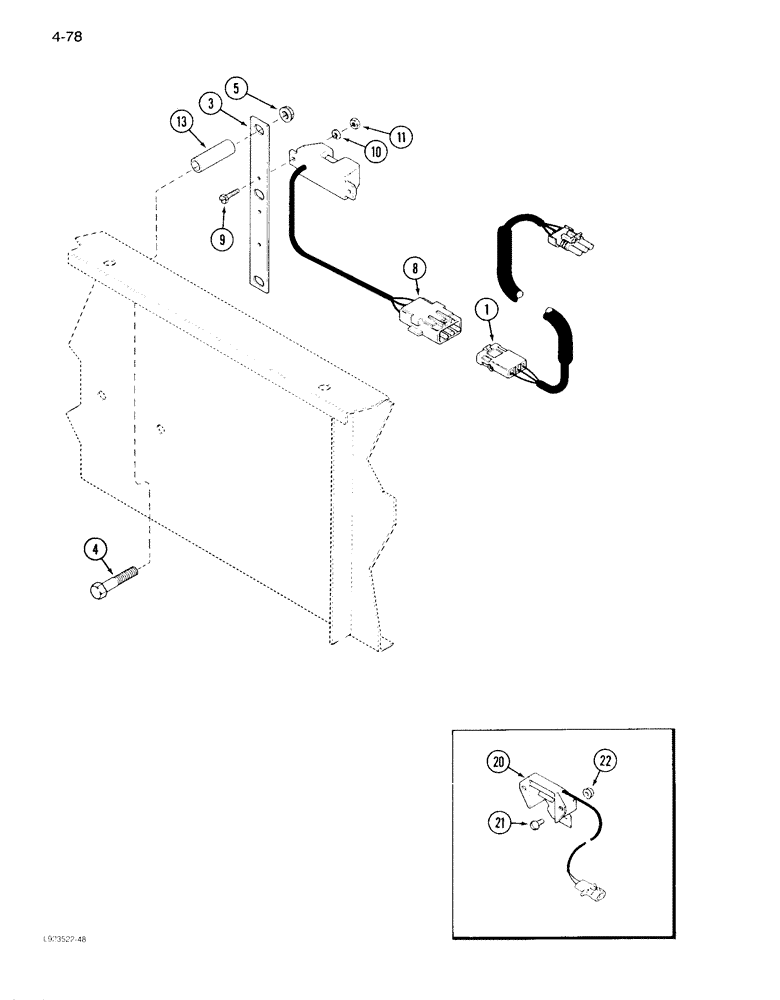

Запчасти Case IH 1640 (4-78) - GRAIN TANK LEVEL SENSOR PRIOR TO P.I.N. JJC0097171 (06) - ELECTRICAL

1

1338321C2

HARNESS

- tank level, Serial Range: -JJC0097171

1шт.

3

1338320C2

SUPPORT

- level sensor, Serial Range: -JJC0097171

2шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

, Serial Range: -JJC0097171

4шт.

4

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch, Serial Range: -JJC0097171

4шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, Serial Range: -JJC0097171

4шт.

8

84204C1

SENSOR

- grain tank level, Serial Range: -JJC0097171

1шт.

9

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, No. 10-24 x 3/4 inch, Serial Range: -JJC0097171

2шт.

10

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10, Serial Range: -JJC0097171

2шт.

11

225-14110

NUT,#10-24

, Serial Range: -JJC0097171

2шт.

13

65881H

SPACER,1/4" Pipe x 1 1/4"

- sensor support, 1/4 x 1-1/4 inch, Serial Range: -JJC0097171

4шт.

13

33847A

SPACER,1/4" Pipe x 1 13/16"

- sensor support, 1/4 x 1-13/16 inch, Serial Range: -JJC0097171

4шт.

20

1987377C1

SWITCH

SENSOR - grain tank level, P.I.N. JJC0097171 and after, Start Serial: JJC0097171

1шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch, P.I.N. JJC0097171 and after, Start Serial: JJC0097171

2шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, P.I.N. JJC0097171 and after, Start Serial: JJC0097171

2шт.
