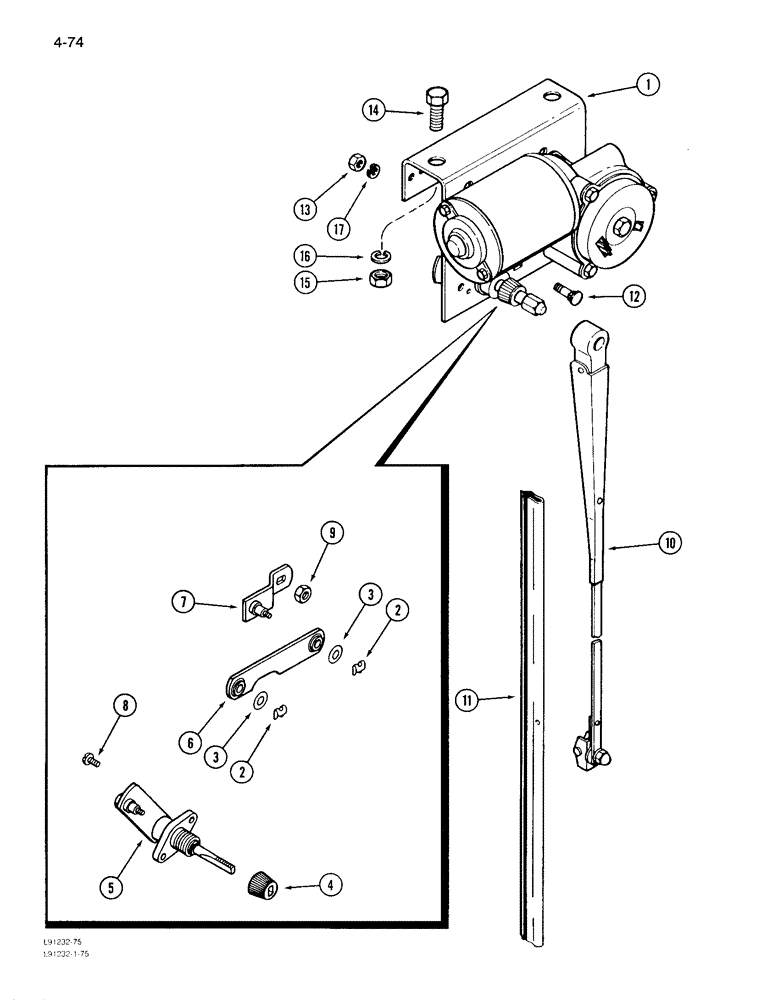

Запчасти Case IH 1640 (4-74) - WINDSHIELD WIPER MOTOR (06) - ELECTRICAL

1

1276130C92

WIPER MOTOR

MOTOR ASSEMBLY - wiper, with mounting bracket, Includes: Ref. 2 - 9

1шт.

2

739487C1

CLIP

- spring

2шт.

3

148074R1

WASHER

2шт.

4

1267556C1

BUTTON

NUT - knurled drive

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT AND PIVOT ASSEMBLY - wiper motor

1шт.

6

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - connecting

1шт.

7

NSS

NOT SOLD SEPARAT

ARM ASSEMBLY - drive

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - retaining, with washer

2шт.

9

NSS

NOT SOLD SEPARAT

NUT - retaining

1шт.

10

1321282C1

ARM

- wiper, 18 inch

1шт.

11

1327520C1

WIPER BLADE

BLADE - wiper, 22 inch

1шт.

12

412-416

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1", Gr 2

BOLT - round head square neck, 1/4 NC x 1 inch

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

14

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
