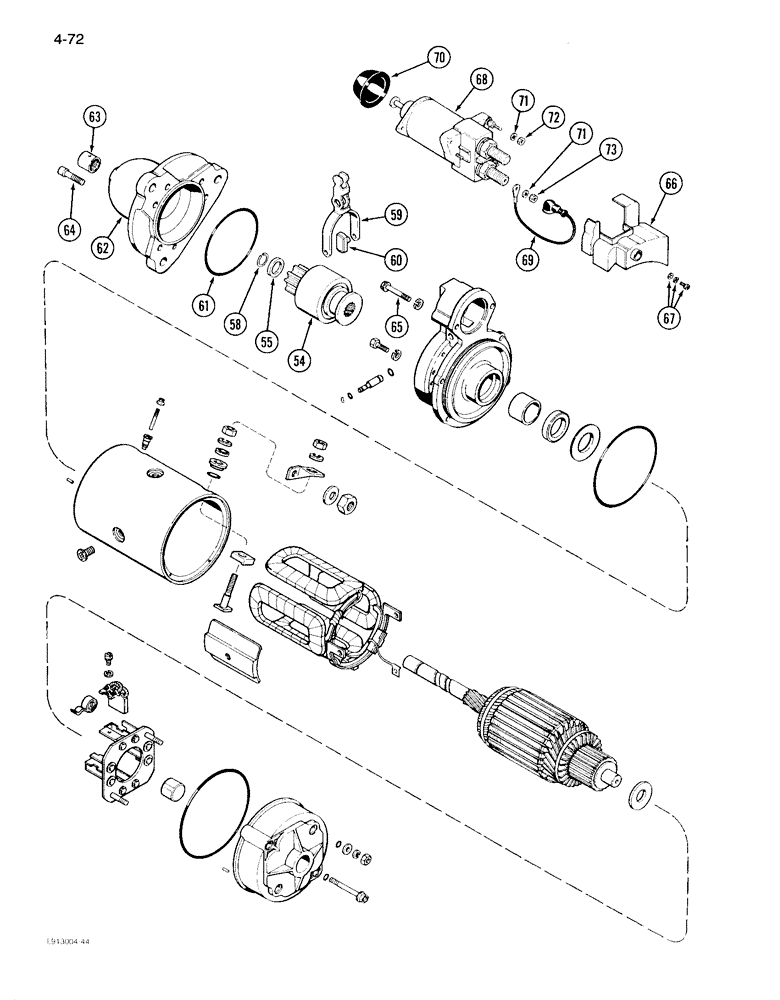

Запчасти Case IH 1640 (4-72) - STARTER (06) - ELECTRICAL

REF

INSTRUCTION

STARTER ASSEMBLY - engine (Continued), Includes: Ref. 1 - 53 Figure 4-70 & Ref. 54 - 73

1шт.

54

A187848

CLUTCH ASSEMBLY

- drive, starter

1шт.

55

A187855

NUT

- stop, pinion

1шт.

58

A47790

RING, SNAP

RING - snap, Serial Range: collar-shaft

1шт.

59

A187853

LEVER

ASSEMBLY - clutch, starter, Includes: Ref. 60

1шт.

60

A187854

WEAR PAD

PAD - lever

2шт.

61

A47786

SEAL

O-RING - housing, clutch

1шт.

62

A187849

HOUSING

ASSEMBLY - clutch drive, Includes: Ref. 63

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

64

A187856

BOLT,Hex, M7 x 24.50mm

BOLT - hex, drive housing

6шт.

66

A187864

COVER

KIT - terminal, Includes: Ref. 67

1шт.

67

NSS

NOT SOLD SEPARAT

SCREW ASSEMBLY - cover

1шт.

68

A187863

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic solenoid, Includes: Ref. 69 - 73

1шт.

69

NSS

NOT SOLD SEPARAT

WIRE - connecting

1шт.

70

NSS

NOT SOLD SEPARAT

COVER - plunger

1шт.

71

NSS

NOT SOLD SEPARAT

WASHER - lock

3шт.

72

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

73

NSS

NOT SOLD SEPARAT

NUT - hex

2шт.

65

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

- hex, 8 x 40 mm

2шт.
